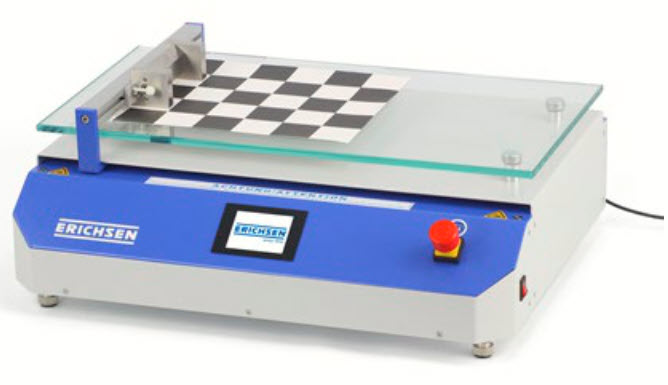

COATMASTER 510 Compact
Purpose and Application
A motorised film applicator is used in cases where
• a surface has to be covered with an absolutely uniform film,• reliable information is needed on the relation-ship between the wet and the dry film thickness,• a large number of exactly identical samples has to be produced.
All kinds of inevitable inaccuracies when applying films manually, are avoided by using the automatic drawing method.
Typical users are:
The lacquer and paint industry, especially for the research / development / quality control of many different products.
Generally universities / academies as well as institutes studying high sensitive facts within the scope of their research and development projects requiring an optimally controlled film application,i.e. in the research of solar cells, fuel cells and accumulators as well as in the medical technology and research.
ACCESSORIES
The user can equip the Film Applicators COATMASTER 510 Compact with the accessories which comply with the special application requirements and test purposes.
In this respect the following accessories are available:

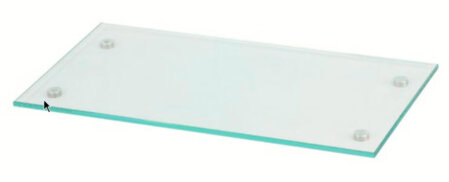

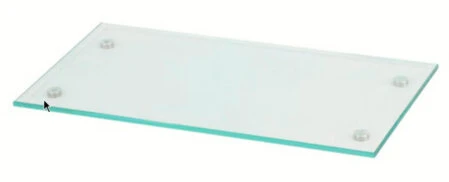

Glas plate
as specimen carrier or direct film substrate.

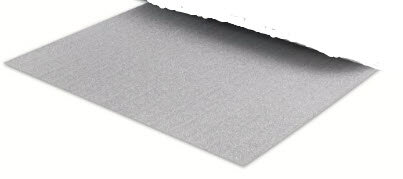

Three-layer Foam/Rubber/Melinex Coating Bed (flexible)
Foils and Charts:
• Plastic foils, system Leneta

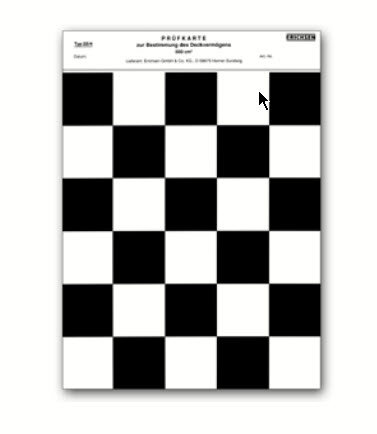

• Contrast charts with chess board pattern or large black/white fields,
as well as serveral other designs (Mod. 451).
Varius Film Applicators:

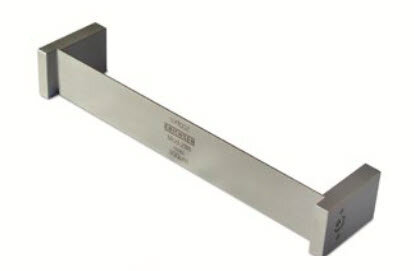

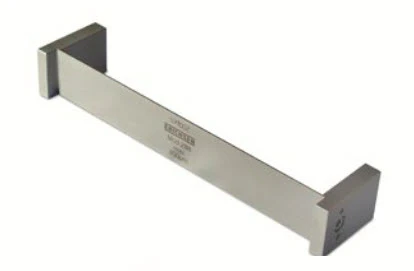

• Film Applicator System Wasag, Model 288,
Width: 80, 120, 180 or 230 mm

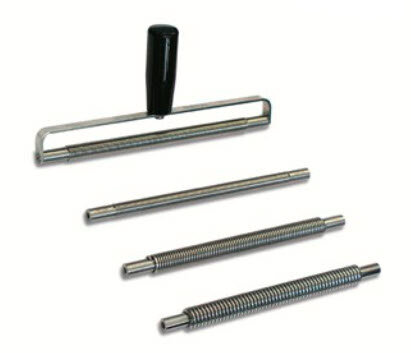

• Spiral Film Applicator, Model 358,
Width: 80, 150 or 220 mm

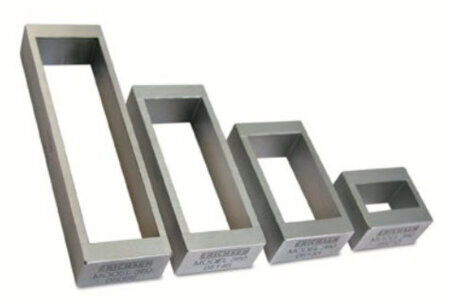

• Quadruple film Applicator, Model 360,
Width: 13, 40, 60 or 90 mm

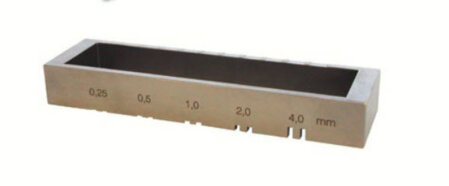

• Levelling Test Blade and Sag Teste, Model 419

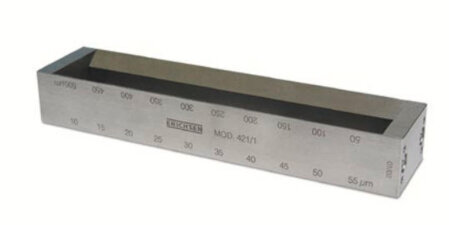

• Staggered-Gap Film Applicator, Model 421/I,
10 films each 20 mm wide
• Staggered-Gap Film Applicator, Model 421/II,
6 films each 35 mm wide
