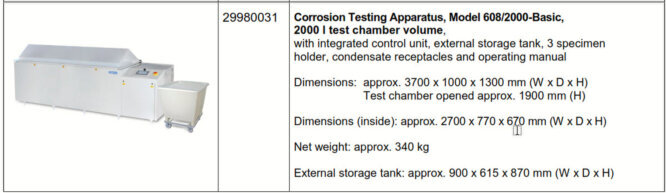

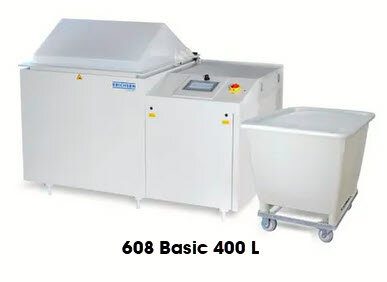

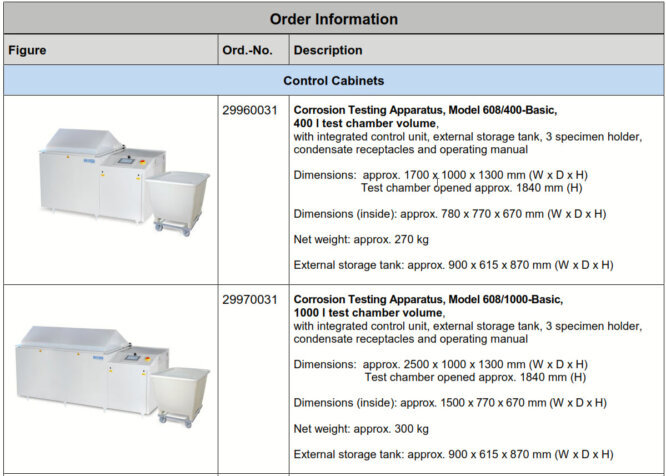

Corrosion Testing Instruments Model 608 Basic
Cyclic Tests
Varying Climatic Conditions
Automotive Standards

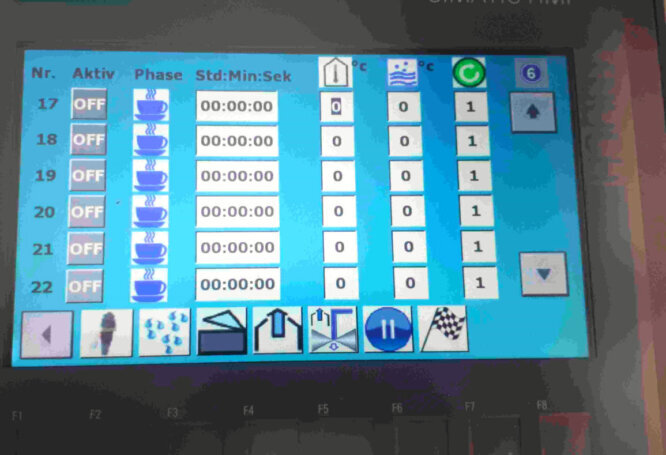

Operation via Siemens touch screen
Purpose and application
Ferrous and non-ferrous metals are attacked continuously by humidity, acids, solutions, gases etc.
It is therefore vitally important to choose the correct surface protection. There are many materials and qualities on the market and their properties must be properly assessed.
Materials intended to prevent corrosion must be tested if failures are to be avoided.
Furthermore the comparative quality control during production is of increasing importance.
The best known processes employ spray vapour tests using various salt solutions as well as condensation water climates.
Test principle

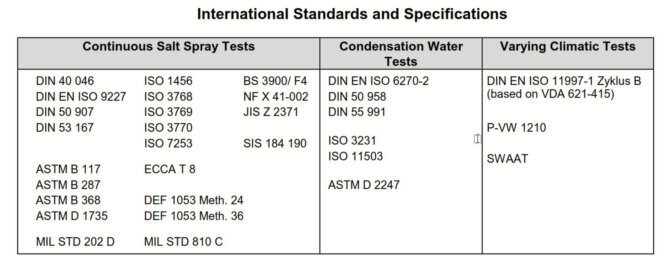

Aggressive solutions are turned into a vapour mist in accordance with the tests that are listed below.
These vapours surround the specimens in the test chamber either continuously or in a cyclic manner.
The corrosion resistance of the individual specimens is established on the basis of the difference in time before the first corrosive effects become apparent.

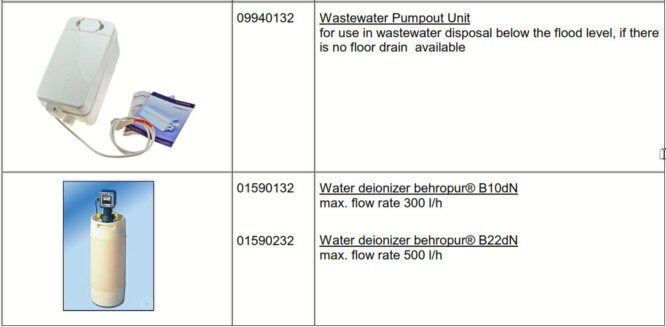

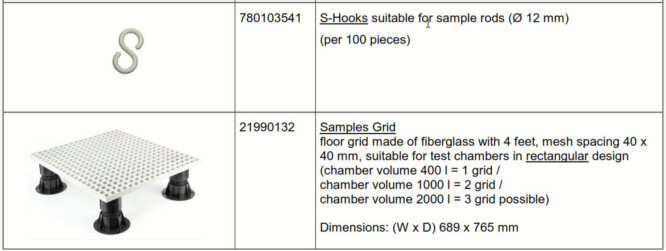

Accessories (optional)

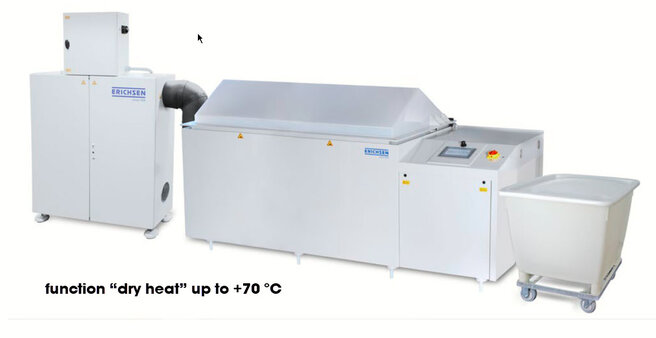

• Additional Function “dry heat”
Extension of a test chamber in rectangular design with the function “dry heat” up to +70 °C
Ref : 101-02240132

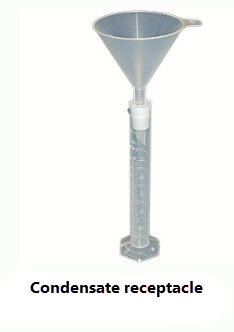

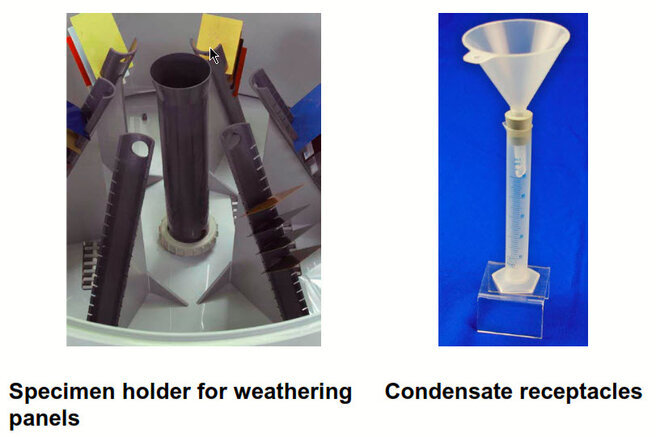

Description : Condensate Receptacle with U-stand (acrylic glass) for checking precipitation in exposure chamber.
Two at least are required for DIN EN ISO 9227, ASTM, MIL-STD and PN tests.

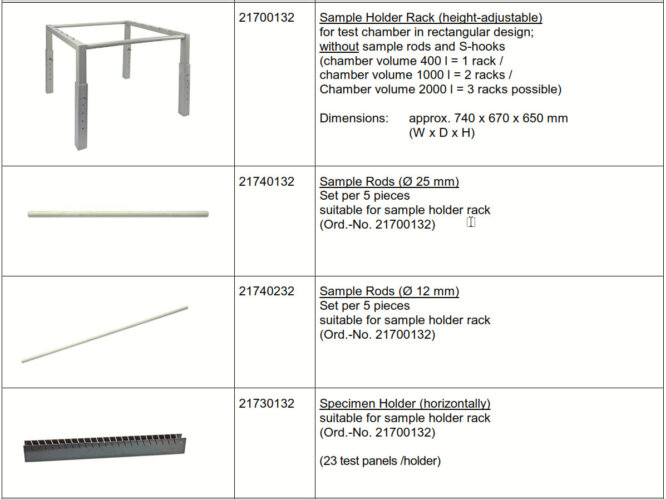

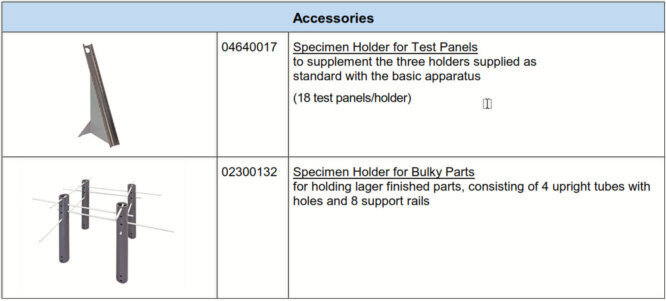

Specimen Holder
Ref : 101-04640017
Description : Specimen Holder for Test Panels for holding 19 test panels at an angel of 20° to the vertical
Test Panels
According to ISO 9227
Ref : 284-1.0330
Description : Test Panels according Iso 9227 (150x70x1mm) steel DC01-CR4
Ref : 1010814.01.32
Description : 608: Test Panel (150 x 70 x 1 mm) made of steel DC04 in accordance with ISO 3574, to determine the mass loss during salt spray tests in accordance with DIN EN ISO 9227.
Ref : 10108140232
Description : 608: Test Panel (150 x 100 x 1 mm) made of steel DC04 in accordance with ISO 3574, for organic coatings in accordance with DIN EN ISO 9227.
According to ASTM B 117
Ref : 284-1.0330/ASTM
Description : Test Panel accord ASTM B117 (127x76x0,8mm) steel SAE 1008 commercial-grade cold-rolled carbon steel ( UNS G10080 ).

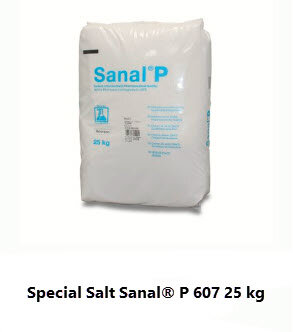

Special Salt Sanal® P 607
Ref : 222-15663
Description : 606/608: Special Salt Sanal P
For the specimen preparation we recommend the following instruments/tools:

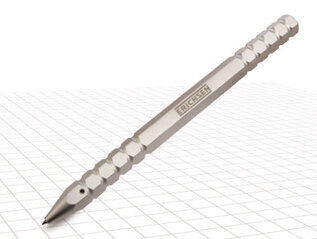

Scratching Tool acc. to van Laar, Model 426
Defined scratch damage on painted surfaces, scratch points according to Van Laar
SCRATCHMARKER 427
Defined scratch damage of painted surfaces, with tip of 0.5 mm diameter

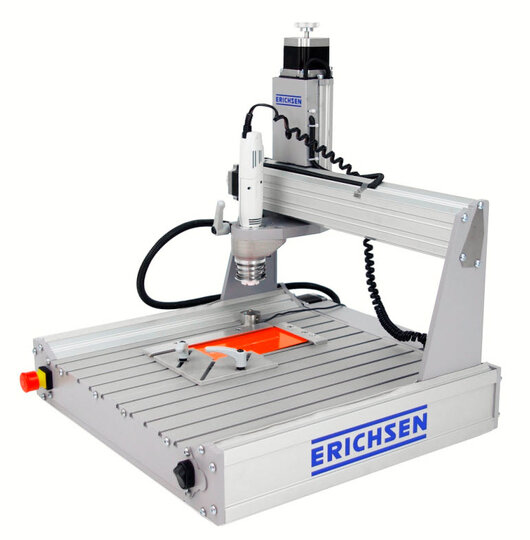

Automatic Milling Machine CORROCUTTER Smart 638
Automatic sample milling machine, standard-conform defined cut "scribe" line application on coated test panels, programmable process, excellent repeatability

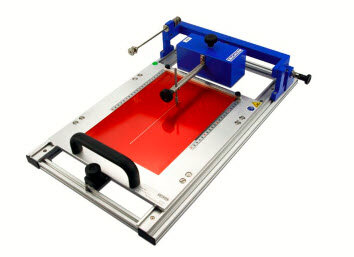

Test Panel Scratcher CORROCUTTER 639
Defined scratching damage on painted surfaces, replaceable scratching tool

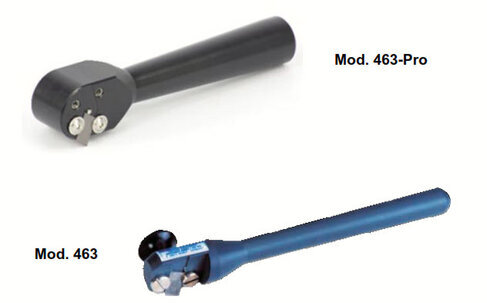

Scratch Stylus acc. to Sikkens, Model 463 // Model 463-Pro
Defined scratching damage of painted surfaces, Sikkens-type scratch tip

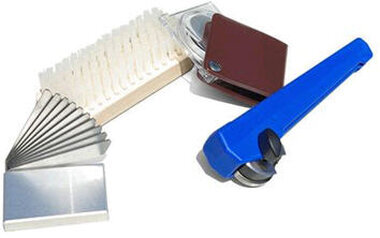

Multi-Cross Cutter, Model 295/III
Single Edge Cutting Device 295/III with Folding Ruler with 10 swivel-mounted folding rulers of 1 mm thickness each, incl. magnifying glass, polyamide bristle brush and plastic case
