Kruss Bubble Pressure TensiometerPocketDyne

Coatings & Industry > Surface Tension

A measurement can be started right away, no introduction, no training and no selection of parameters necessary. On top of that, our high performance accumulators allow for a day-long mobile use.

For saving measuring data – the Dynamic Surface Tension – KRÜSS has equipped the device with a flexible memory, which saves the data even when the instrument is switched off. With this it is possible to transfer the measured data to a computer afterwards – particulary simple by use of the USB interface.


The optional software module of the well-known tensiometer software LabDesk from KRÜSS turns the mobile PocketDyne into a completely computer controlled laboratory measuring instrument with graphic data output in real time.

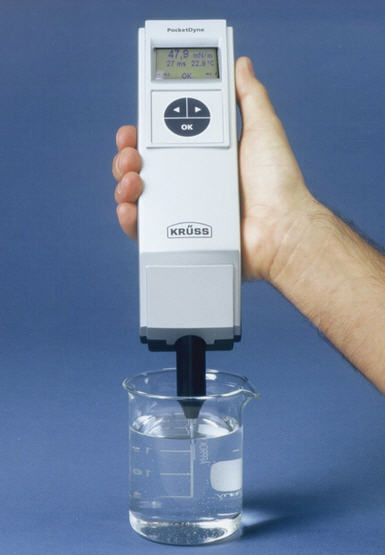

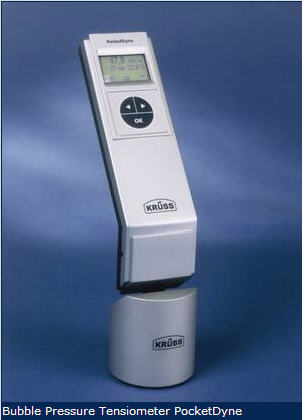

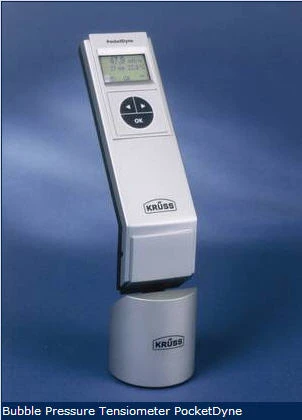

Features of the Bubble Pressure Tensiometer PocketDyneThe first truly handheld bubble pressure tensiometer.

The novel tensiometer PocketDyne is characterized by its high flexibility and mobility in use. You can measure under any conditions possible and virtually in any beaker, container or tank. The ease of use is underlined by its robustness and ergonomic design following the long tradition of KRÜSS in this direction. The PocketDyne can be operated using one hand only. The three large function keys are easily reached by the thumb of your hand.

Instrument & accessories


BP
2100 PocktetDyne, Bublle pressure Tensiometer
PA2110  Stand to support the PocketDyne for high surface age measurement
SH2110  Pecision Capillaries (10 pieces)
SH2120  Precision Capillaries (50 pieces)
SH2130  Precision Capillaties (100 pieces)
SW2110 Data-Logger-Software
SW2120 LabDesk Bubble-Pressure Module



Extremely precise and inexpensive disposable capillaries made from inert speciality polymers minimize the effort of calibration and guarantee a high degree of measurement accuracy. You avoid the time-consuming and incomplete cleaning often required when using other instruments. Also, the depth of immersion of the capillary does no longer affect the measurement results- thanks to the smart use of modern technology for which KRÜSS has a patent pending. The measurement runs automatically, surface age or bubble frequency are adjustable over a wide range. Thus surface active material can be characterized fast - and complete compared with devices which offer just limited and fixed settings for surfage age. Default settings are either the real surface age or the bubble frequency, and not as other supplier offer, just the less significant “bubble lifetime”.



Technical Data of the PocketDyne

  • Measuring range: 10 - 199 mN/m

  • Resolution: +/- 0.1 mN/m

  • Adjustable surface age: 15 - 1500 ms nominal

  • Temperature range: 0 - 100°C

  • Resolution: 0.1 K

  • Power consumption: max. 300 mW

  • Battery power: 12 hours

  • Input voltage: 85 - 264 VAC

  • Input Frequency: 40 - 60 Hz

  • Data output: seriell, RS232C and USB (optional)

  • Storage: 25 storage positions

  • Display: graphic, 64 x 132 Pixel

  • Dimensions: 62 x 260 x 35 mm (w x h x d)

  • Weight: 330 g





Application

  • Monitoring of the surface tension of surfactant or wetting agent containing baths in washing, detergency, degreasing and electroplating

  • Development of formulations in which surface-active substances are to be used

  • Field service, mobile use in production

  • Checking the surface tension as a quality assurance criterion for inks, rinses and other critical dynamic products

  • Determining the kinetics of the solubility, diffusion and adsorption of surface-active substances
