Adhesion on concrete

Coatings & Industry > Mechanical properties > Adhesion & Elongation

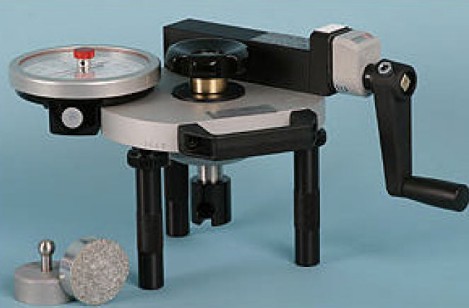

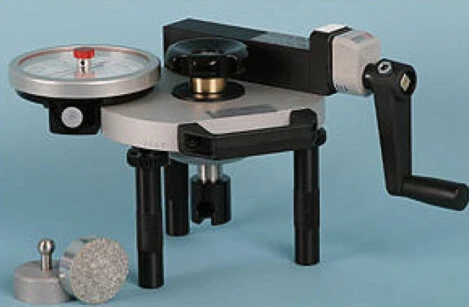

Traction dynamometer providing information about the adhesion strength and cohesion of materials.
Thanks to hydraulic transmission of axial movement, the strength is apply with a constantly increasing.
The twin hydraulic system allow to the measurement part to be independent from the movement part.
  • Ease of use on site and laboratory
  • Reading on a pointer indicator with peak value.
Packaged in a transport case wiht a ball head screw.

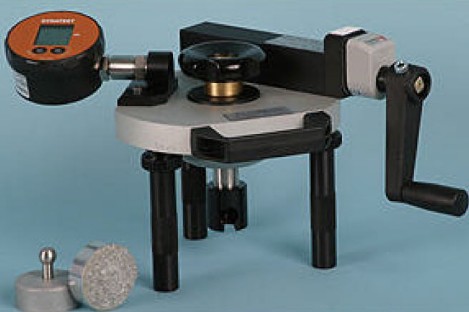

Traction dynamometer providing information about the adhesion strength and cohesion of materials.
Thanks to hydraulic transmission of axial movement, the strength is apply with a constantly increasing.
The twin hydraulic system allow to the measurement part to be independent from the movement part.
Reading on digital indicator, pressure sensor with peak value.
The indicator operated with one 3 volt battery (type CR2430), stopping automatically after 15 min.
  • Ease of used on site and laboratory
  • Packaged in a transport case with a ball head screw.
Reference
Type
Tensile Strength
Unit of reading
Handle
Revolution counter
Twin Hydraulic System
Ball head screw
DTH 500 dc
Pointer
5 kN
0,05 kN
Yes
Yes
Yes
M8
DTH 1600 dc
Pointer
16 kN
0,10 kN
Yes
Yes
Yes
M8
DTH 2500
Pointer
25 kN
0,25 kN
Yes
Yes
M12
DTH 5000
Pointer
50 kN
0,50 kN
Yes
Yes
M12
DTEpico 100  dc
Digital
1 kN
0,002 kN
Yes
Yes
Yes
 M8
DTEpico 250  dc
Digital
2,5 kN
0,002 kN
Yes
Yes
Yes
M8
DTEpico 500  dc
Digital
5 kN
0,002 kN
Yes
Yes
Yes
M8
DTEpico 1600 dc
Digital
16 kN
0,003 kN
Yes
Yes
Yes
M8
DTEpico 2500
Digital
25 kN
0,01 kN
Yes
Yes
M12
DTEpico 5000
Digital
50 kN
0,03 kN
Yes
Yes
M12
DTEpico 10000
Digital
100 kN
0,06 kN
Yes
Yes
M16
Araldite glue used to fix the dollies.
Extractometer  to check  the strength of fixing parts on building site also available on request.Yes
Custom-made testing discs : special manufacturing on demand according to your dimensions, test surface
(flat, concave or convex).
