Process & Quality Control

Accessories for Spring Viscometer

Coatings & Industry > Physical properties > Viscosity & Consistency
HELIPRO SPRING Specifications Scope of supply

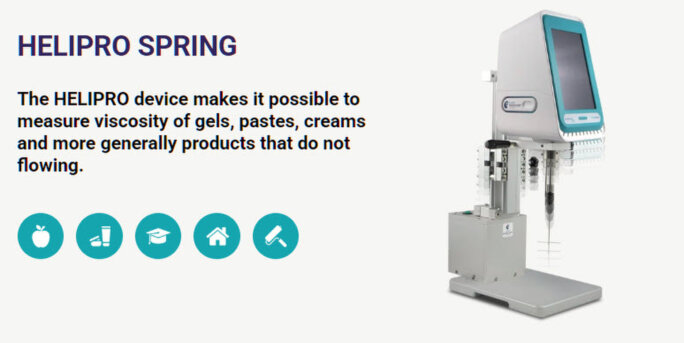

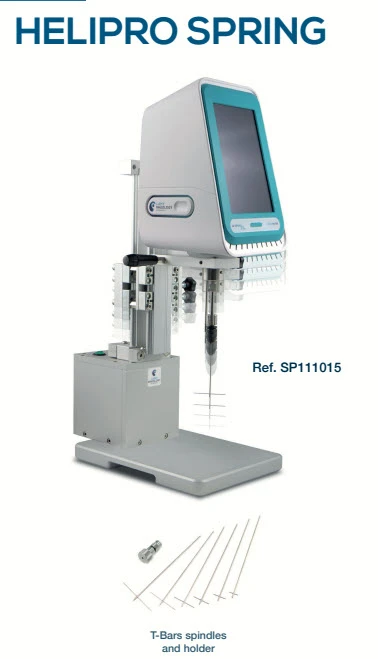

NEW!  HELIPRO SPRING
When a measuring mobile turns in this type of product, we can observe appearance of cavities around the rotating spindle which has effect of reducing measured viscosity values.
Through its movement vertical, HELIPRO system with its mobile T shape will prevent formation of cavities within product and will ensure reliable and consistent measurement.

This accessory is compatible with viscometers and rheometers from the LAMY RHEOLOGY range except
  • FIRST PRODIG CP 1000,
  • RM 100 CP 1000/2000 PLUS,
  • RM 200 CP 4000 PLUS,
  • GT-300 PLUS,
  • GT-300 PRODIG
  • and DSR 500 CP 4000 PLUS.
Specifications
  • Type of instrument :                              Accessory for viscometer

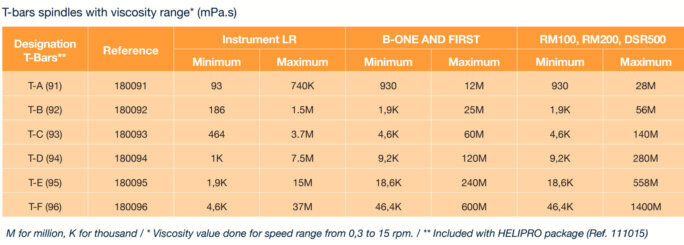

  • Compatible measuring systems :  6 T-Bars (A,B,C,D,E and F) in case/ 1 adapter for mobile T-Bars/ Tools for elevator adjustments.
  • Supply voltage :                                       90-240 VAC 50/60 Hz
  • Dimensions and weight :                    D330 X W200 X H500 mm
    Weight :                                                       9Kg
  • Part Number :                                          111-SP111015
Scope of supply

  • 1 Stand with integrated elevator
  • 6 T-bars (A, B, C, D, E and F) in briefcase
  • 1 Adaptation axis with chuck for mobile T-bars
  • Tools for the adjustment of the elevator.

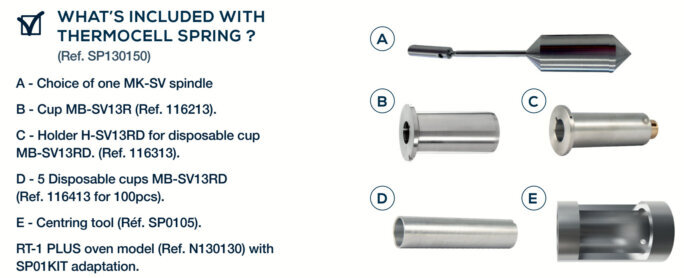

THERMOCELL Specifications

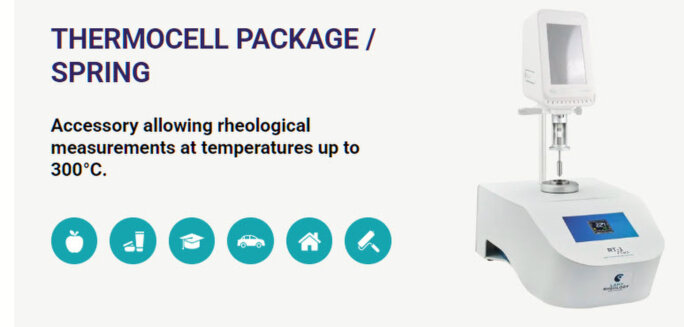

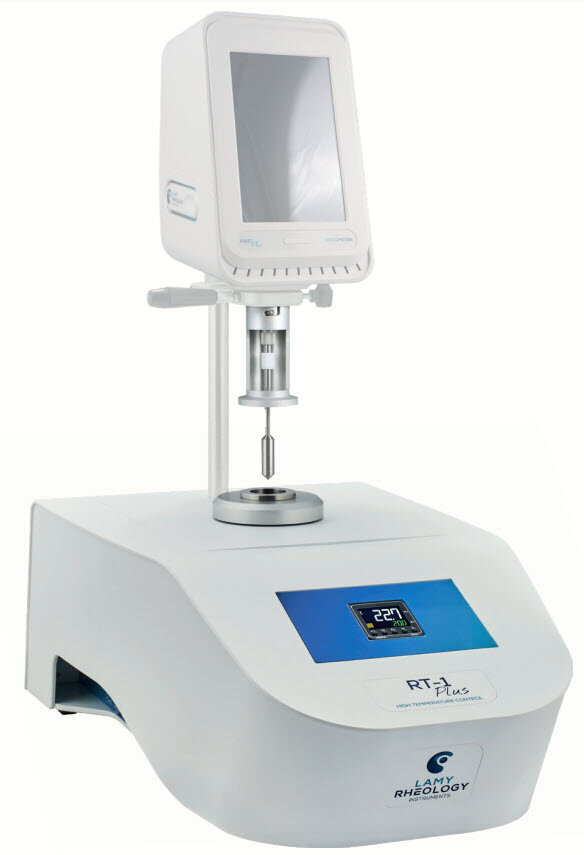

THERMOCELL PACKAGE / SPRING

+Ambient temperature range at +300°C.
+Economic electric furnace.
+Compatible with all devices with bayonet coupling.
+Use of disposable aluminum buckets.
+Compatible with ASTM standards D4402 and D3236.
+Compatible with LV- SPRING and RV- SPRING instruments.
Specifications

  • Type of instrument :                                  Accessory for viscometer

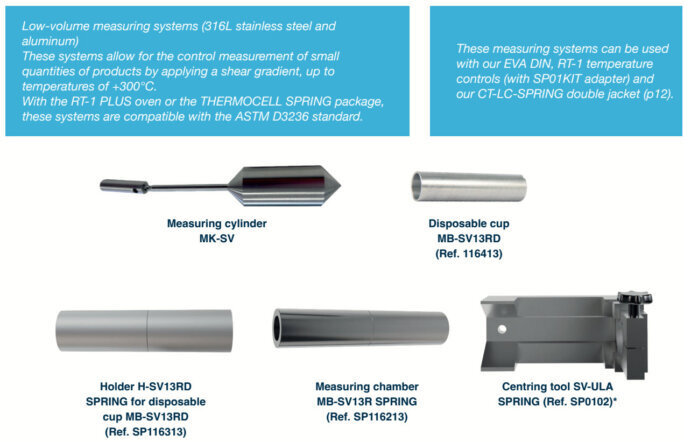

  • Compatible measuring systems :      MS SV SPRING
  • What benefits are there for you? :    Ambient temperature range at +300°C.
                                                                                  Economic electric furnace.
                                                                                  Compatible with all bayonet-mated devices.
                                                                                  Use of disposable aluminum buckets.
                                                                                   Compatible with ASTM standards D4402 and D3236.
                                                                                   Compatible with LV- SPRING and RV- SPRING instruments.
  • Part Number :                                               111-SP130150
Onglet 1 Specifications Scope of suply

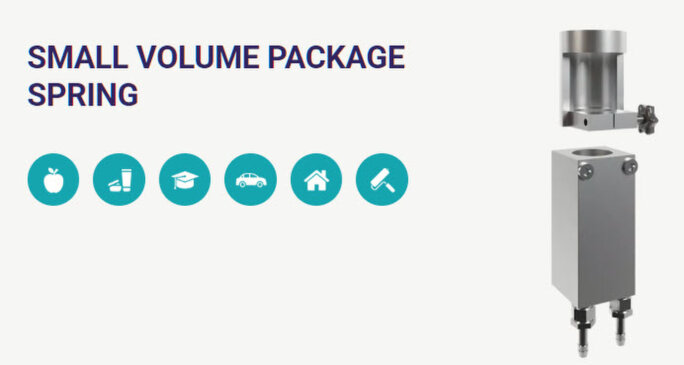

Accessory for viscometer SMALL VOLUME PACKAGE SPRING

Guide's double-jacketed, circulating supports enable the use of all measuring systems comprising a cylinder and a bucket, ensuring precise temperature control in conjunction with a circulating bath (not supplied).

Sold separately or in kit form, these accessories are compatible with SPRING LV/RV viscometers.
Specifications :
  • Type of instrument :   Accessory for viscometer
  • Temperature :                 -20°C at +65°

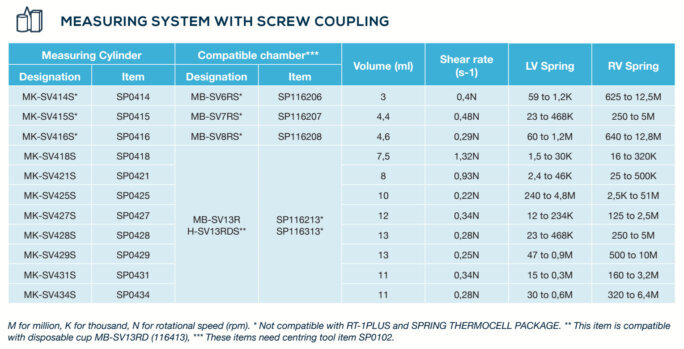

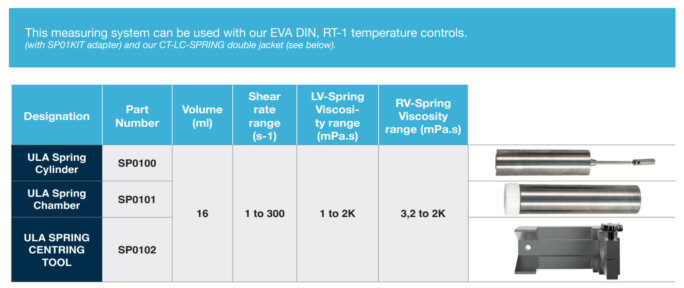

  • Compatible measuring systems :   MS ULA SPRING, MS SV SPRING
  • Dimensions and weight :                      L70 x P70 x H160 mm
    Poids :                                                              1.5 Kg
  • Part Number :                                             111-SP600900

What's included with package 111-SP60090 :

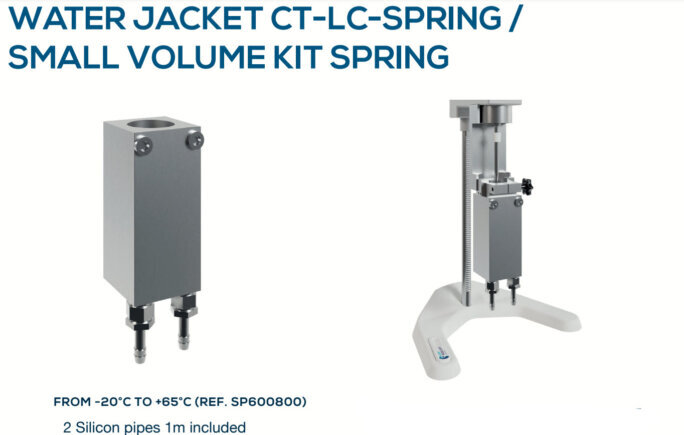

• Water Jacket CT-LC-SPRING (Ref. 111-SP600800).
• Centring tool (Ref. 111-SP0102).
• 2 Silicon pipes (1m).
• One spindle MK-SV-SPRING (to be choose here under).
• One chamber MB-SV-SPRING  (to be choose here under).
