We propose a large range of thread gauges  :

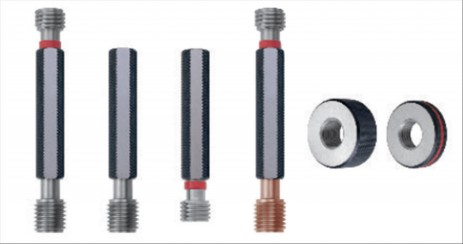

  • Thread plug gauges

  • Thread plug gauges, TiCN coated

  • Thread ring gauges

  • Limit plug gauges

  • Ring gauges


Type of threads, standard program:
· M  · G  · Pg
· EG-M
· MF  · R/Rp  · BSW
· UNC  · NPT  · Rd
· UNF  · NPTF  · Tr

Different Gauges :

M          ISO Metric Coarse Threads, DIN 13 154
MF        ISO Metric Fine Threads, DIN 13 156
EG-M     ISO Metric Coarse Threads for wire inserts
BSW      Whitworth Coarse Threads BS 84
UNC       Unified Coarse Threads ANSI B 1.1
UNF       Unified Fine Threads ANSI B 1.1
G           Whitworth Pipe Threads DIN ISO 228
Rp/Rc/R  Whitworth Pipe Threads DIN EN 10226, ISO 7, DIN 2999 (withdrawn)
NPT        American Taper Pipe Thread - Taper 1 : 16 accord. to ANSI B 1.20.1 ”general purpose”
NPTF      American Taper Pipe Thread - Taper 1 : 16 accord. to ANSI B 1.20.3 ”dry sealing”
Tr           Metric ISO Trapezoidal Threads DIN 103
Rd          Round Threads DIN 405
Pg          Steel Conduit Thread, DIN 40430
             Plain Plug Gauges
             Plain Ring Gauges

Special gauges available on request.

Don't hesitate to inform us about your needs : link to send us an email !
