WiFi Temperature  datalogger

WiFi Temperature Data Logging Sensor
The WiFi-T measures the temperature of the environment in which it is situated.  Data is streamed wirelessly over any WiFi network and can be viewed on a PC or the FilesThruTheAir™ Cloud using the free software package.
It can then be placed anywhere within range of the network.
If the sensor, for any reason, temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application or FilesThruTheAir™ Cloud.
The LCD display includes several features including Max and Min readings, and an indicator for low battery, WiFi connection and signal strength.
The software installed on the PC will allow set-up, data logging and data review. Set-up features include sensor name, °C/°F, sample rate, and high/low alarms. Once configured, historic data can be viewed via the graphing tool or exported into Excel. This software is available to download for free from the Support page.  Free firmware downloads are also available.
The sensor is a freestanding unit, however, it can be attached to a wall or vertical surface using the bracket provided.

  • Temperature measurement range -20 to +60°C (-4 to +140°F)
  • Easy sensor set-up using free PC software application (available on the Support page)
  • Wirelessly stream and view data via WiFi on PC or FilesThruTheAir™ Cloud
  • View and analyse multiple sensors, including graphing of historic data
  • Configurable high and low alarms with indicator
  • Sensor memory stores all data even if WiFi is temporarily disconnected
Squirrel SQ2020 Wi-Fi  and Squirrel SQ2040 Wi-Fi Data Loggers
Powerful data loggers for all applications

The Squirrel 2020 series comprises two models:
Squirrel 2020-1F8
  • Up to 20 readings per second on 1 channel
Squirrel 2020-2F8 (high speed model)
  • Up to 100 readings per second on 2 channels
  • In-built Ethernet connectivity
  • Up to four 3 or 4 wire Pt 100/1000 sensor inputs

The Squirrel 2040 series comprises two models:
Squirrel 2040-2F16
  • Up to 100 readings per second on 2 channels
  • Two 24-bit A to D converters
  • In built Ethernet connectivity
Squirrel 2040-4F16 (high speed model)
  • Up to 100 readings per second on 4 channels
  • Four 24-bit A to D converters
  • 4 pulse rate / counter inputs (2 at up to 64kHz, 2 at up to 100Hz)
  • In built Ethernet connectivity

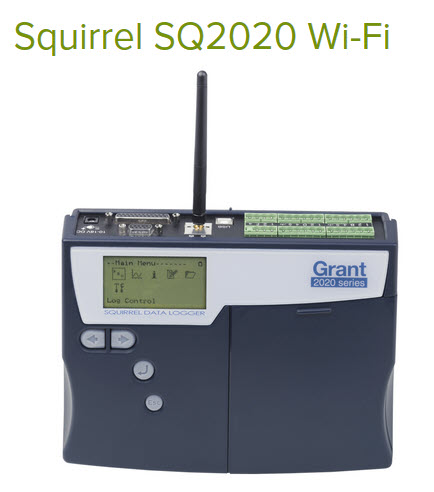

Squirrel SQ2020 Wi-Fi
8 differential or 16 single ended channels

Key Features
  • 8 true differential or 16 single ended universal analogue inputs  for voltage, current or resistance measurements plus 2 high voltage, 4  pulse and 8 digital event/state inputs
  • Analogue inputs can be used with thermistors, thermocouples, 2, 3 or 4 wire RTD temperature sensors and 4-20mA signals
  • Logging rates of up to 100Hz on up to two channels
  • Large non-volatile internal memory storage for up to 14 million readings
  • Download of internal data to removable MMC/SD (Multi Media Card / Secure Digital) memory
  • Sensor power and FET outputs for use with external devices
  • Easy to read LCD and simple 4 button user interface
  • Up to 16 calculated / derived channels may be created using mathematical functions

Analogue inputs supported
  • Thermistors
  • Thermocouples
  • Pt100/Pt1000 (maximum of four 3 or 4-wire Pt100/1000 sensors)
  • Voltage
  • Current
  • Resistance

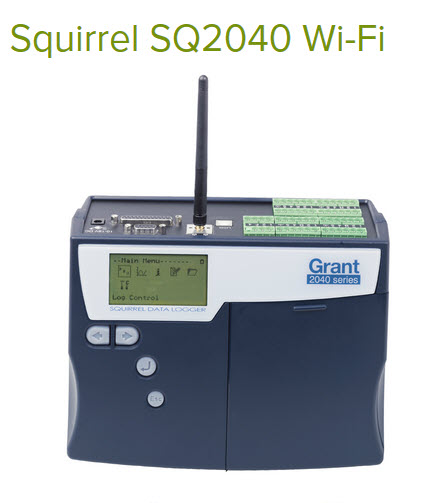

Squirrel SQ2040 Wi-Fi
16 differential or 32 single ended channels

Key features
  • 16 true differential or 32 single ended universal analogue  inputs for voltage, current or resistance measurements plus 2 high  voltages, 4 pulse and 8 digital event/state inputs
  • Analogue inputs can be used with thermistors, thermocouples, 2,3 or 4 wire RTD temperature sensors and 4 - 20mA signals
  • User selectable logging rates of up to 100Hz on up to four channels
  • Standard (802.11b) wireless (Wi-Fi) Ethernet networking, USB and RS232 communication ports
  • Large non-volatile internal memory storage for up to 14 million readings
  • Download of internal data to removable MMC/SD (Multi Media Card / Secure Digital) memory card
  • Sensor power and FET outputs for use with external devices
  • Easy to read LCD and simple 4 button user interface
  • Calculated channels derived from real channels using advanced mathematical functions e.g. log(x); ln(x); sqrt(x)

Analogue inputs supported
  • Thermistors
  • Thermocouples
  • Pt100/Pt1000 (maximum of eight 3- or 4-wire Pt100/1000 sensors - model 4F16 only)
  • Voltage
  • Current
  • Resistance



SQ2020-1F8
SQ2020-2F8
SQ2040-2F16
SQ2040-4F16
Analogue input channels8 to 168 to 16
16 to 32
16 to 32
High voltage channels
2222
Digital channels
8888
Counter channels
4444
Input types:




- current
P
P
P
P
- voltage
P
P
P
P
- resistance
2-wire2-, 3-, or 4-wire2-wire
2-, 3-, or 4-wire
- 3 or 4 wire Pt100/Pt1000
X
P
P
P
- temperature
P
P
P
P
Max no. readings per second
20 (on 1 channel)
100 (on 2 channels)
100 (on 2 channels)
100 (on 4 channels)
Accuracy
0.05%
0.05%
0.05%
0.05%
Display
128 x 64 dot matrix LCD
Memory capacity
14 million readings
14 million readings
14 million readings
14 million readings
External memory (MMC/SD card)
P
P
P
P
RS232 communications
P
P
P
P
USB communications
P
P
P
P
Ethernet**
x*
P
P
P
Wi-Fi option**
x*
P
P
P
Alarm outputs
4
4 44
Sensor power output
regulated 5VDC@50 mA and external supply voltage up to 28V on 2010 and 18V on all others @100mA
Set-up/analysis software
SquirelView/SquirrelView Plus
Environment
- 30 to 65°C RH up to 95% (non-condensing)
SquirrelView & SquirrelView Plus  SOFTWARE

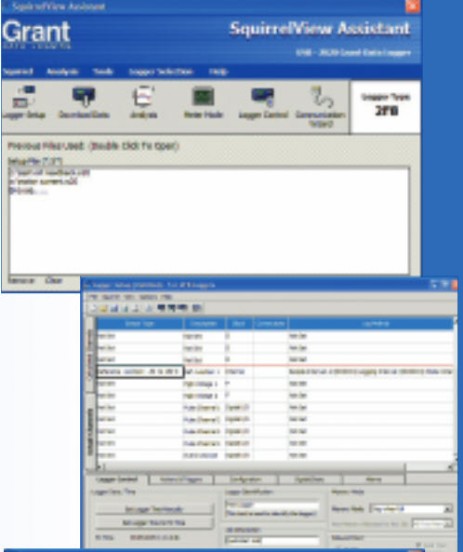

SquirrelView is a universal software package that works with any Grant Squirrel data logger and is included FREE with every new logger. It enables easy setup of the logger, speedy download of data, and direct export to Excel spreadsheets. SquirrelView Plus gives you the additional benefits of graphically analysing your historical and on-line data, along with advanced reporting.
A FREE 30 day trial of SquirrelView Plus is included with SquirrelView.

SquirrelView
Configuration download and export application suitable for Windows (download from website).
Windows 7, 8 and 10 (including a free 30-day trial of SquirrelView Plus).

SquirrelView Plus
Provides full data analysis, on-line graphing, metering to Excel and export to Excel.

Key Features
  • Intuitive, user friendly spreadsheet style setup allows quick logger configuration in any application
  • Flexible data presentation allows you to quickly display and analyse real time or historical data as a line graph, bar chart or analog gauge
  • Graphical alarm and event identification lets you easily identify occurrences around specific analog or digital events e.g. pump coming on
  • Quick Graph function lets you quickly and easily view large data files
  • Export data into Excel or as a CSV file for customisable data analysis
  • Send data straight from your logger into Excel in real time
  • Easily view and control the logger status from one single screen
  • Downloading data by date, time or events, saves you time when working via modem or looking for specific data (Squirrel 20xx only)
  • All settings can be saved for efficient reuse
  • Security function protects your data and setup configurations
  • Communication wizard makes working with modems, Ethernet, GSM and wireless systems straight forward
  • Downloader for automating tasks using MS scheduler (Squirrel 20xx only)

SquirrelView Plus Analysis

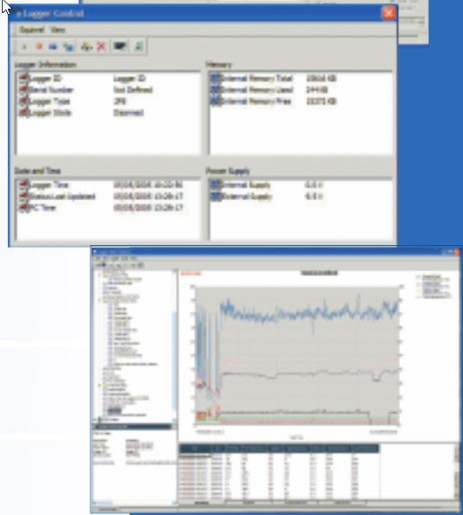

SquirrelView Plus lets you quickly and easily analyse the data from your Squirrel data logger in a familiar Explorer style interface. Data can be displayed with 2 different auto scaling Y-axes. This is particularly useful when displaying widely varying data from different sensors on one graph. You can also zoom in on areas of interest, use a cursor to pick out exact values, times and dates, get a
statistical summary of your data, set high and low alarm thresholds and, using the calculation function, you can create new virtual channels from existing channels.
SquirrelView Plus also incorporates a report generation facility, which allows you to create custom report templates consisting of a  yitle page with descriptive text, headers and footers, graphs, tabular list of data, statistics and data logger setup information. Templates can be setup with any of these combinations and saves time when preparing similar presentations of data.

SOFTWARE SPECIFICATIONS

SETUP
• Setup can be verified before it is sent to the logger
• Converts setup files from previous Setwise software to SquirrelView
• Hide facility allows you to tailor setup interface to your own requirements
• Print setup information

METER MODE
• Displays up to 16 channels in real time
• 3 Plot types: line graphs, gauges & dials
• Autoscaling of Y axis
• Value readout at cursor position
• Saves metered data for re-use in othersoftware packages
• Graph printout facility
• Graph can be presented in various styles

DOWNLOAD
• Download directly as a CSV file
• Download straight to a graph
• Download by date & time (SQ20xx only)

EXPORT
• Easy to use export wizard
• Customisable data export for Excel, Lotus or other applications
• Export viewer allows quickview facility of data

ADDITIONAL FEATURES
• Tips of the day-provides informative shortcuts
• Logger diagnostics
• Security feature enables password setup
• Communication wizard enables easy setup of USB (20xx only), RS232, Ethernet and Modem
• Interactive Help
• Spanish and German versions available ANALYSIS

SquirrelView Plus version only
SquirrelView & SquirrelView Plus
ANALYSIS
• Easy analysis for: SQ20xx, SQ400/800, SQ1000, SQ1600, SQ1200/1250 and 600 series loggers
• Easy to use Explorer style interface
• Fully configurable data views
• Creation of templates
• Flexibility for customisable reports
• Facility to include text comments with graphs
• Flexible zoom feature including X and Y axis
• Statistics calculator
• Autoscaling of Y axis
• Value readout at cursor position
• Set and view high and low level thresholds
• Customisable report facility: prints out graphs, readings,etc
• Tolerance curve
• Calculated channels
• User notes
• Archives
• File convertor from Setwise and Squirrelwise
• Product cure calculation
• Display oven profiles and oven zones
• Append/add datafiles
• Import CSV file

Minimum computer requirements:
• Windows 98SE, 2000, XP
• Pentium II 266 MHz
• RAM as specified by PC operating system
• 60 Mb hard disk space and 1 CD drive
• Colour SVGA monitor running at 800 x 600 (1024 x 768 recommended)
• 1 RS232 or USB port (where applicable)
• Mouse

SquirrelView Plus version only
SquirrelView & SquirrelView Plus
