Grant ecocool Refrigerated Circulating Baths
A new range of innovative, eco-friendly, refrigerated and heating circulating baths offering significant running cost savings whilst delivering powerful cooling.
Applications
- Pharmaceutical - mini pilot plant reactors
- Education - rotary evaporator cooling, replacement of running tap water cooling, immersing small samples, photometry, chromatography systems
- Industrial - QC testing, sample preparation, general cooling, reaction chemistry, temperature control, semi-conductor manufacturing, rheometry
- Food - refractometry
- Life-science - electrophoresis cooling
- High temperature cooling - active up to 150ºC
About
Consisting of two models, all products in the ecocool range are supplied assembled as ready to use kits, complete with accessory hosing, clips and connectors as standard.
- Choice of two models, temperature range -30°C to 150°C (model dependent)
- 3 year warranty with Grant renowned service and support, no registration required
- Active cooling through the whole temperature range
- True energy saving of up to 80% against standard compressor units
- Built in Britain to the highest specifications
- Thermostat and chiller work in harmony, neither will operate alone, eliminating any danger of overheating or freezing
- Single front switch for user convenience
- Modern, sleek, attractive design
Products in the range

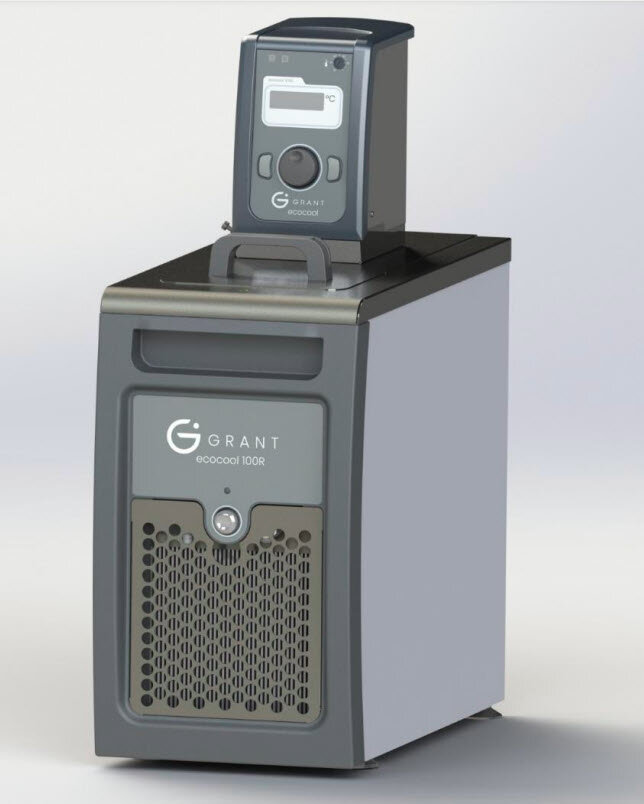

- ecocool 100R
- ecocool 150R
Specifications 1
ecocool 100R ecocool 150R
Dimensions h x d x w mm 630 x 490 x 240 630 x 490 x 240
Capacity L 4.5 5.5
Weight kg 22 24
Temperature range °C -20 to 100 -30 to 150
Temperature stability ±°C 0.05 0.02
Refrigerant R290 R290
Flow rate (max) L/min 17 14 - 22 (adjustable)
Pump pressure (max) mbar 250 530
Tank volume L 4.5 5.5
Tank opening (h x w mm) 120 x 150 120 x 150
Min/Max liquid level mm 105/140 160/190
Programs - 1 x 30 segments via Labwise™
Communication interface - USB
Temperature probe socket - 6 pin mini DIN

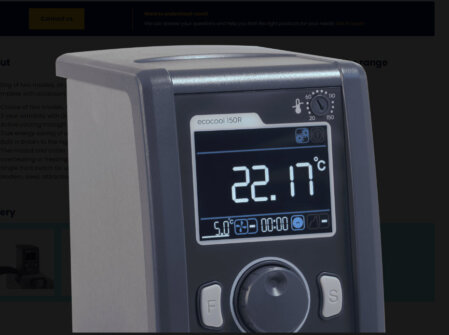

Display 4 digit LED Full colour QVGA TFT
Specifications 2
ecocool 100R ecocool 150R
Calibration points 2 5
Cooling power (typical) W
@ 20°C 250 450
@ 0°C 200 350
@ -10°C 100 300
@ -20°C 50 200
Languages - "5 (EN, FR, DE, IT, ES)"
Timer 1 min to 99 hrs 59 mins 1 min to 99 hrs 59 mins
Temperature presets 3 3
Alarms High High and low
Electrical power (max) W 120V/230V 2160/2070 (60/50 Hz) 2280/2760 (60/50 Hz)
Safety Adjustable over temperature cut-out Adjustable over temperature cut-out
Ready to use kits "Assembled and supplied "Assembled and supplied
with standard tubing, insulation, with standard tubing, insulation,
clips and connectors" clips and connectors"
Accessories
SF20CS 5L container of Silicone Fluid - 20cS. Recommend for useover the temperature range of 70 to 150°C
SF50CS 5L container of Silicone Fluid - 50cS. Recommend for useover the temperature range of 70 to 200°C
DEIOWATER 5L container of deionised water
WG5050 5L container of water and ethylene glycol – 50:50 mix.Recommend for use over the temperature range
of -30 to 30°C
WG8020 5L container of water and ethylene glycol – 80:20mix.Recommend for use over the temperature range
of 0 to 30°C
PEP Flexible plastic probe, 3m cable
SEP Stainless steel probe, 3m cable
HOSE100 General purpose hose kit, includes 2 x 2m general purpose insulated hosing -40 to 100˚C,
assembled with ecocool/OptimaTM pump outlet plate and simple hose clips, no tools required
HOSE200 High temperature hose kit, includes 2 x 2m high temperature insulated hosing -50 to 200˚C,
assembled with ecocool/OptimaTM pump outlet plate and simple hose clips, no tools required
Labwise Allows two-way communication for status display, programming and data capture
P-M6 Replacement plastic pump inlet/outlet connector. Fits tubing 9mm inner dia. Temperature
range -50 to 200ºC
P-M11 Plastic pump inlet/outlet connector. Fits tubing 15mm inner dia. Temperature range -50 to 200ºC
VTP1-LT Maximum pressure 1000 mbar, Maximum flow 9 L/min
VTP2-LT Maximum pressure 1650 mbar, Maximum flow 12 L/min
Accessory Notes Required only where application demands a higher pressure than that delivered by the internal pump
to maintain flow.
