LCS140 Lethality Compliance System

Need to record humidity at high temperatures?

Look no further than the
LCS140 WetBulb/Dry-Bulb system.

Ditch the complexity of calculating with a psychrometer, the LCS140 coupled with the MadgeTech 4 Software does all the work for you!

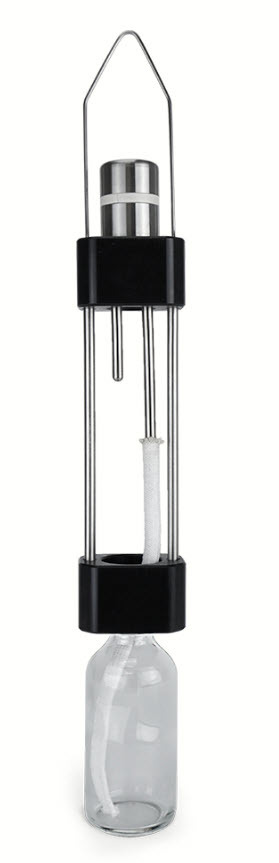

Capable of withstanding temperatures from -40°C to +140°C, the dual probe LCS140 takes wet-bulb and dry-bulb readings simultaneously to determine the amount of humidity present.

The LCS140 Includes:
• LCS140 Dual Probe Data Logger
• Reservoir Bottle (recommended to use distilled water only)
• Wet Bulb Socks
• Hanging Fixture

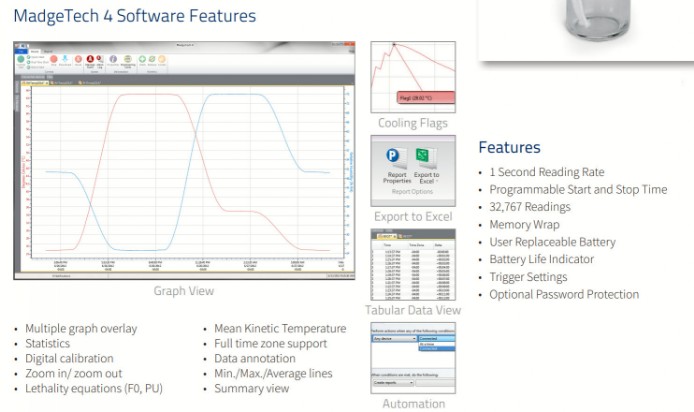

The LCS140 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy.
Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
SPECIFICATIONS

TEMPERATURE
Temperature Sensor                Rigid RTD Probe
Temperature Range                 -40 °C to +140 °C
Resolution                                     0.01 °C
Calibrated Accuracy                ±0.1 °C

GENERAL

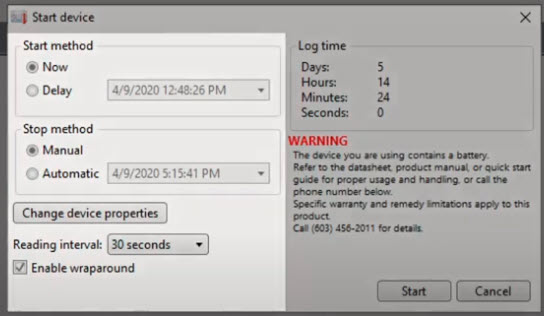

Start Modes                                    Software programmable immediate start or delay start up to 18 months in advance
Stop Modes                                    Manual or Timed (specific date and time)
Memory                                            32,767 readings
Password Protection                 An optional password may be programmed into the device to restrict access to
                                                               configuration options. Data may be read out with the password.
Readings in Trigger Settings Mode                  16,383 readings
Trigger Settings                            High and Low limits may be set.
                                                              Once data meets or exceed sets limits, the device will record to memory.
                                                               Bi-level start and stop triggers can also be programmed.
                                                               Users can specify the number of readings to take after the device triggers.
                                                                (Triggering on channel #1 only)
Wrap Around                                  Yes
Calibration                                        Digital calibration through software
Calibration Date                            Automatically recorded within device
SPECIFICATIONS

Battery Type                                           3.6V high-temperature lithium battery included; user replaceable
Battery Life                                             1 year typical (1 minute reading rate at 25 °C/77 °F)
Data Format                                            Date and time stamped °C, °F, °R, K
IP Rating LCS140 Data Logger     IP68
Time Accuracy                                       1 minute/month at 25°C  Extended Operation: ±20 minutes/month at 140°C (±450 ppm)
Computer Interface                             IFC400 or IFC406 USB docking station required; 125,000 baud
Operating System Compatibility Windows XP SP3 or later
Software Compatibility                      Standard Software version 4.2.19.0 or later Secure Software version 4.2.18.0 or later
Operating Environment                    -40 °C to +140 °C     0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA
Dimensions                                               356 mm x 44 mm x 30 mm
Weight                                                         221 g
Material                                                      316 Stainless Steel / Radel
Approvals                                                  CE

BATTERY WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD.
DO NOT SHORT CIRCUIT, CHARGE, FORCE OVER DISCHARGE, CRUSH, PENETRATE, OR INCINERATE.
BATTERY MAY LEAK OR EXPLODE IF HEATED ABOVE 150ºC
Ordering Information

LCS140                                       PN 269-902168-00          Lethality Compliance System
IFC400                                        PN 269-900319-00          Docking station with USB cable
LCS140 Data Logger           PN 269-902229-00          LCS140 Data Logger only
LCS140 Hanging Fixture   PN 269-902230-00          LCS140 Hanging Fixture only
LCS140 Glass Bottle            PN 269-902231-00          LCS140 Glass Bottle 2 oz
LCS140 Extra Socks              PN 269-902232-00          LCS140 Extra Socks (6 Pack)
ER14250MR-145                  PN 269-900097-00          Replacement battery for LCS140 Dual Probe Data Logger
