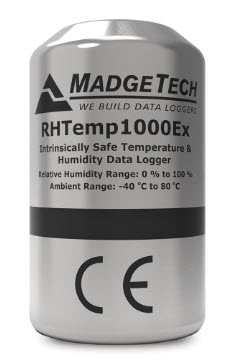

RHTEMP1000EX

The RHTemp1000Ex humidity and temperature data logger carries hazardous location certification (ATEX, IECEx).
Includes ISO 17025 accredited calibration certificate.

Key Features:
  • Compact Size
  • ATEX Approved
  • Measures Temperatures from -40 °C to 80 °C
General
  • Memory :              32,767 readings
  • Reading Rate :    1 reading every 2 seconds up to 1 reading every 12 hours
  • Battery Life :        2 years typical at 15 minute reading rate
  • Material :               316 Stainless Steel/Radel
  • Dimensions :        1.7 in x 0.97 in x 0.97 in (42 mm x 24.6 mm x 24.6 mm)
  • IP Rating :              (Not Rated) Caution: Do not submerge this product to retain IS rating.
  • Operating Environment :  -40 °C to +80 °C, 0 %RH to 95 %RH (case properly sealed)
  • Required Interface Package :  IFC400 or IFC406

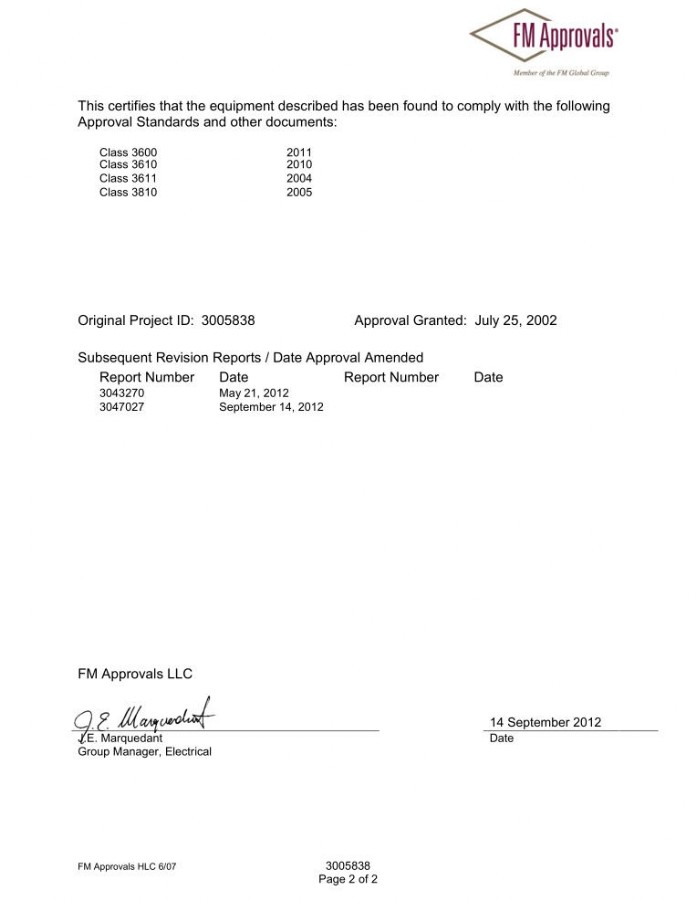

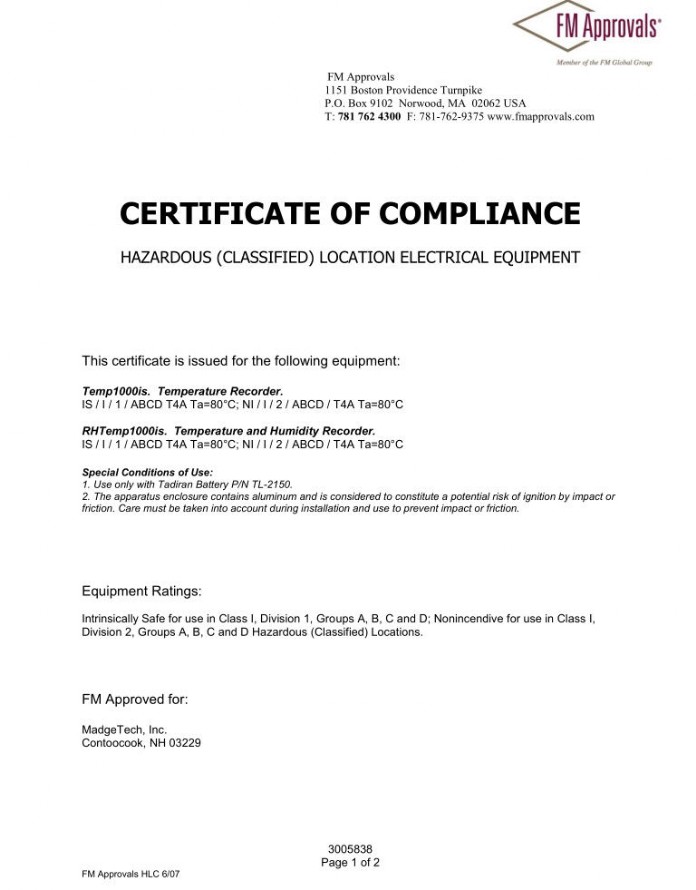

  • Approvals :
      • CE
      • ATEX
      • IECEx
Temperature
  • Temperature :                                               SensorResistance Temperature Detector (RTD)
  • Temperature Range :                                  -40 °C to +80 °C
  • Temperature Resolution :                         0.01 °C (0.018 °F)
  • Temperature Calibrated Accuracy :  ±0.5 °C (0 °C to 55 °C)


Humidity
  • Humidity Sensor :                                 Capacitive Polymer
  • Humidity Range :                                   0 %RH to 100 %RH (non-condensing)
  • Humidity Resolution :                         0.1 %RH
  • Humidity Calibrated Accuracy :   ±3 %RH maximum
  • Humidity Specified Accuracy Range  :
    • 25 %RH to 75 %RH
    • +20 °C to +40 °C
    • Hysteresis Error 1 % Typical,
    • 3% Maximum
