Gyroscopic Mixer

Coatings & Industry > Physical properties > Mixer & Dissolver

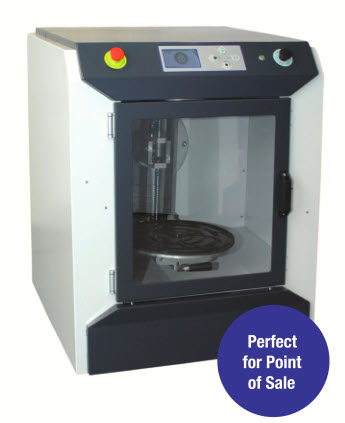

iMix: The  Gyroscopic Mixer
The mixer designed for the machine user
  • Select the optimal mixing speed (rpm), mixing time and clamping pressure
  • Self corrects when vibration is detected
  • Faster clamping, bigger door, easier loading

The mixer designed for the machine manager
  • Predict Maintenance - mixer auto sends turnover data and maintenance needs
  • Reduce service calls - Repair your mixer remontely

Specifications
  • Mixing action : Gyroscopic /  Biaxial with automatic speed control
  • Typical applications : Paints, Plasters, and inks in metal & plactic containers up to 40 kg (49 cm x diam 36 cm)
  • Motor power : 1,1 kW with frequency inverter
  • Dimensions : 102 cm H, 80 cm W, 86 cm D

iMix: The Competitive Gyroscopic Mixer
Intelligent
  • Just Press Start
  • Reduced Mixing Times
Compact - Perfect for Point of Sale
  • Modern Styling and Small Footprint
  • Reduced Service Costs
Versatile
  • Mix round, oval, metal and plastic cans
  • Mix 4 cans at the same time
Just Press Start!
iMix - The Intelligent Gyroscopic Mixer
iMix will recognise your paint can and automatically adjust and select the :
  • Fastest Mixing Speed (rpm)
  • Optimal Mixing Time  (minutes)
  • Best Clamping Pressure
- Automatic - pressure changes based on can size.

Simple Controls
The Compact Gyroscopic Mixer
  • Compact but Robust Mixer
  • Easy to Service and Repair
  • Large Door and Pull Out Tray with Automatic Clamping and Unclamping
  • Clear Controls and large LCD display
Easy to Service
iMix - The Versatile Gyroscopic Mixer
  • Large range of multi can size clamp  plate / adaptors.
  • Mixes cans from 8.6-42 cms - Metal, Plastic including oval.
  • Available in customised colours.
iMix - Technical Data
Product Name : iMix gyroscopic mixer
Special features : Mixer selects mixing speed and pressure automatically
Market Applications : All Paint Shops mixing large volumes of heavy paint cans including 20 litre cans and including high viscosity paints. New modern styling.
Unique features  :      • Change parameters via frequency inverter
                                             • Very low power consumption
Mixing action : Gyroscopic - with speed selection
Mixing capacity : 35 kg
Mixing Speeds : 3 Automatically selected speeds based on can size
Motor Power : 1,1 kw with frequency inverter
Mixing range - container dimensions height  :  8.6 - 42 cms
Mixing range - container dimensions diameter : 38 cms
Mixing range - container types : Metal, Plastic including oval
Clamping system : Automatic - pressure changes based on can size
Display / Controls : LCD with panel
Timer - Minute timer : electronic 1-9, 15, 20, 25, 30 minute
Programmable : Yes
–        Mixing speed and mixing times : 3 zones
–        Clamping pressure : 3 zones
–        Mixing Direction - bi directional : No
–        Softstart and speed (gear) change : Yes
Languages : Yes
Pull out tray : Yes
Door : Large Perspex hanging door
Dimensions H x W x D (cm) : 101 x 73 x 84
