Profile Projector

Metrology > Optical measuring system

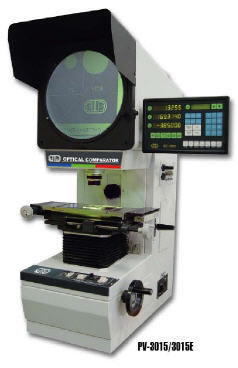

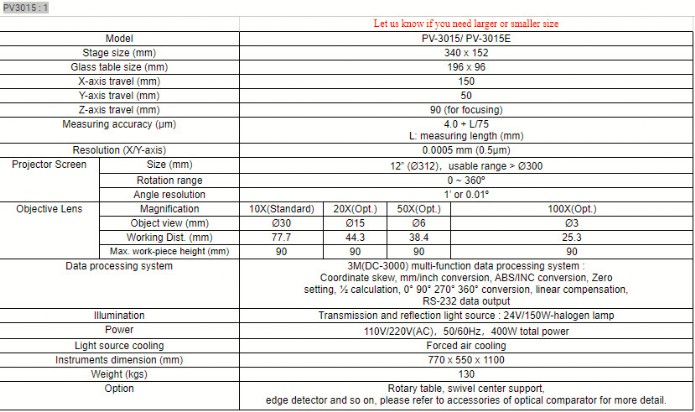

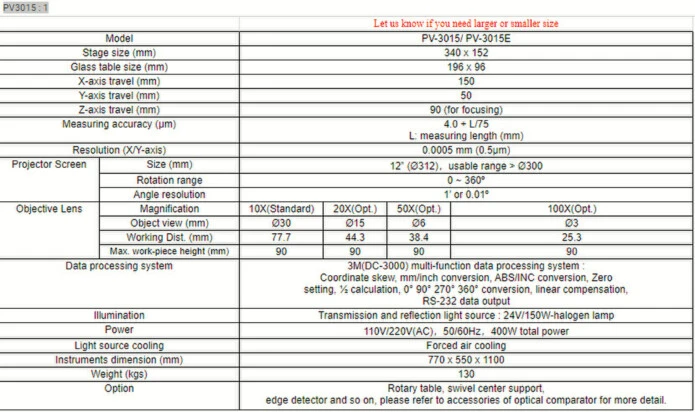

Vertical Standard Type Digital Optical Comparator

PV-3015    series   (Reverse image)
PV-3015E   series   (Erect image)

PV series profile projectors are reliable and affordable measuring system of high precision and efficiency. An excellent solution to the most critical requirments of high quality Optical Profile Measuring Suitable for measuring different shapes. Complicated profiles such as press components, gears, cams, treads, tools, dies, turned components, automats ect. Most effective device to measure most 2 Dimensional parameters like linear dimensions and angles.
The components, such as linear scale, digital readout, optical lens, etc., are all made by Carmar Technology.
Features:
Magnification accuracy : 0.08% contour, 0.12% surface.
Equipped with DC-3000 data processing system and foot-switch for measuring.

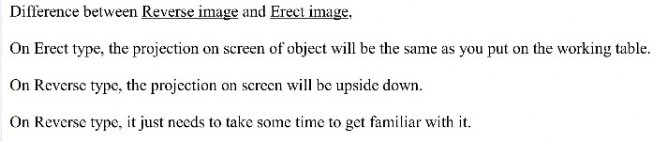

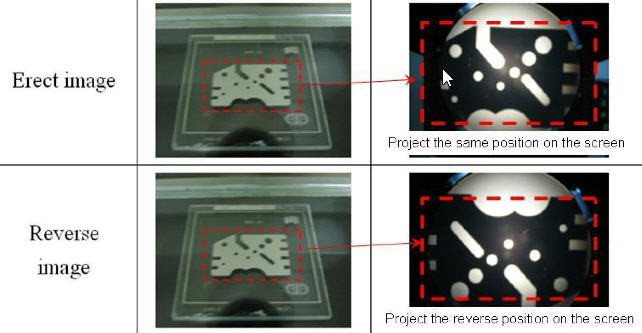

Erect image measuring for different requirements.

Excellent optical measuring system to project precisely magnified image.

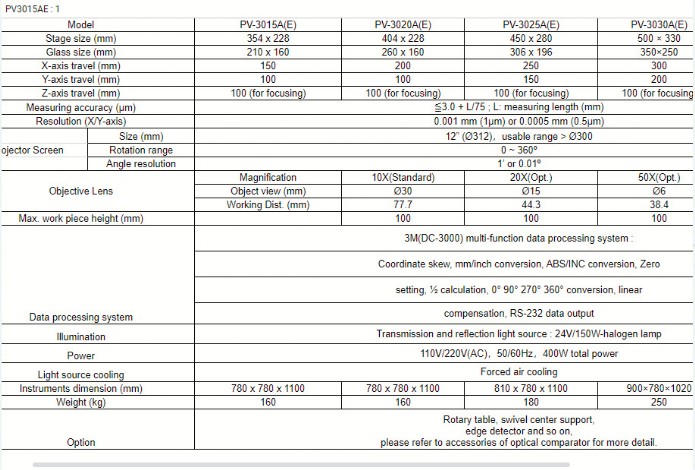

Vertical Enhanced Type Digital Optical Comparator

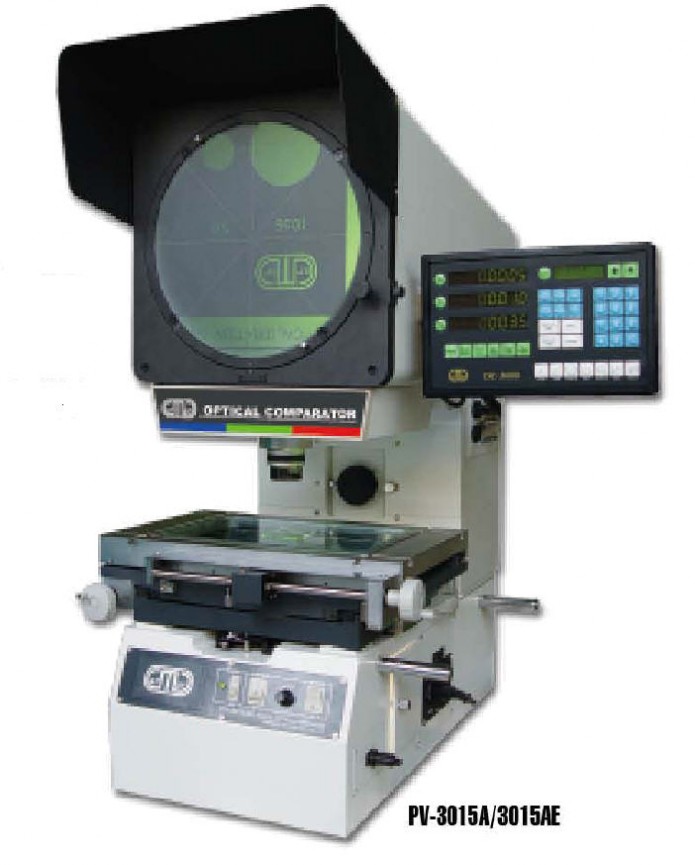

PV-3015A    series   (Reverse image)
PV-3015AE   series  (Erect image)
PV series profile projectors are reliable and affordable measuring system of high precision and efficiency.
The accuracy has caught up with the famous manufacturers, such as Nikon, Mitutoyo, OGP, TESA, Werth, Starret, etc.
The optical comparator is widely used in calibration labs or on the shop floor as a stand-alone unit.
It’s also a good choice for general purpose tool room work to measure complex shapes and hole patterns easily and quickly.
We have made erect image type to meet different requirements.
The components, such as linear scale, digital readout, optical lens, etc., are all made by Carmar Technology.


Features:
The accuracy of PV-3000 series optical comparator can reach the international level.
1.          Max travel distance can be up to 250 x 150 x 100
2.          High precision table design can afford load of 50 kgs without affecting the measuring performance.
3.          Design with elevation of projecting screen for focusing to ensure stability and high precision.

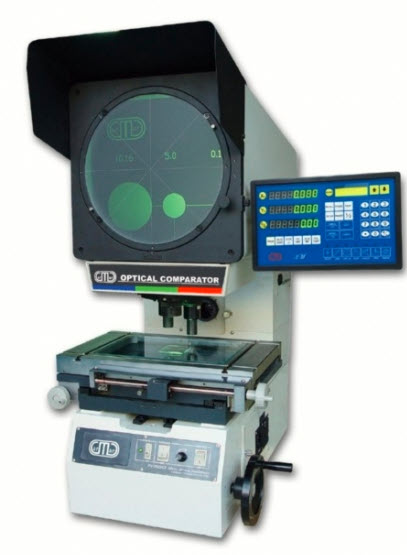

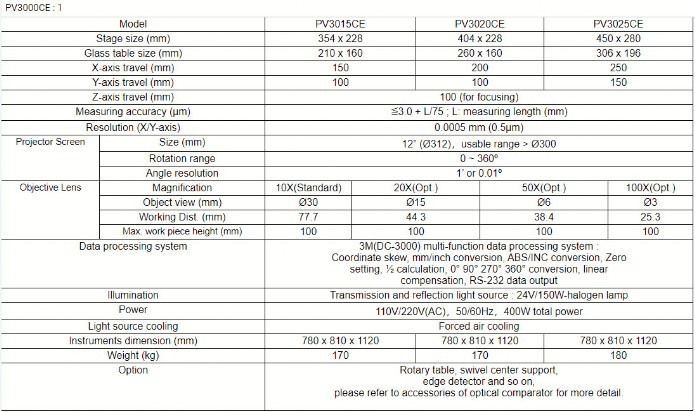

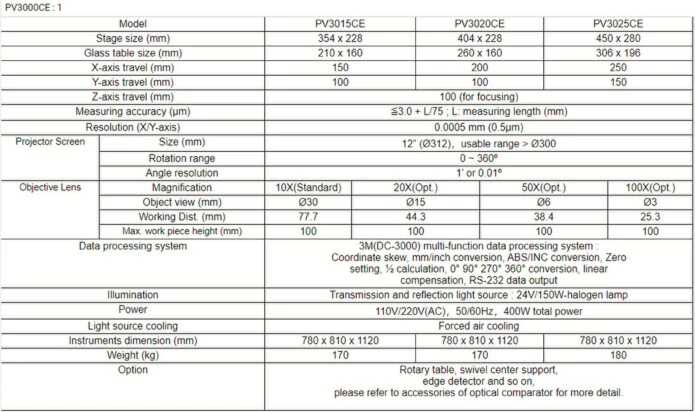

PV-3025CE

Vertical Enhanced Type Multi-lens Digital Optical Comparator

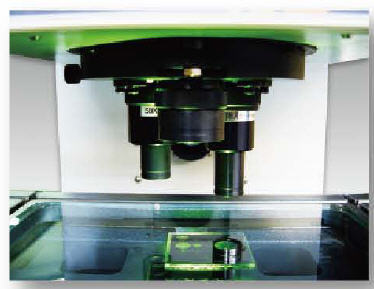

PV-3025CE owns high quality optical measuring performance. There is a rotary lens turret which equips with three different lens. When working in different magnifications, users can rotate the lens, instead of changing lens individually.
The components, such as linear scale, digital readout, optical lens, etc., are all made by Carmar Technology.


Features:
The accuracy of PV-3000 series optical comparator can reach the international level.
1.          Max travel distance can be up to 250 x 150 x 100
2.          High precision table design can afford load of 50 kgs without affecting the measuring performance.
3.          Design with elevation of projecting screen for focusing to ensure stability and high precision.

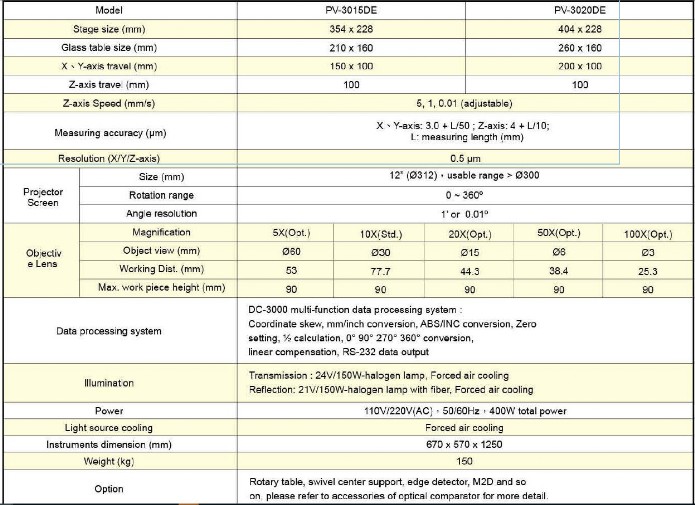

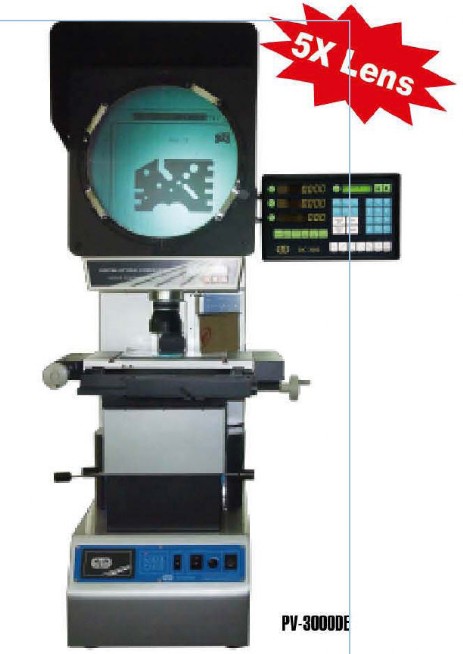

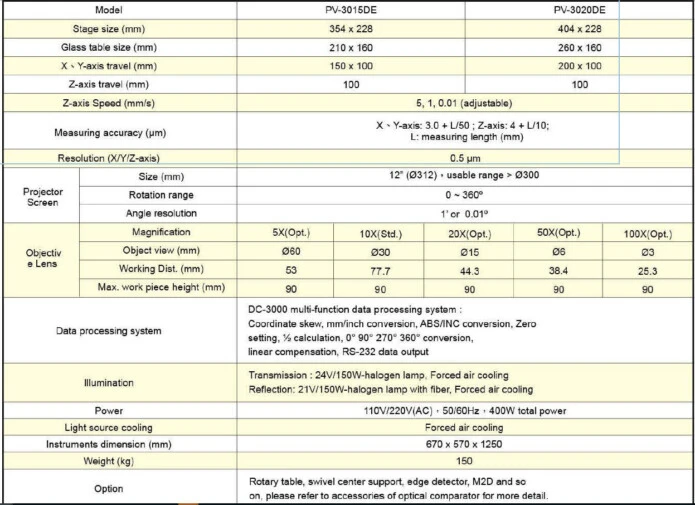

Digital Optical Comparator
PV-30000 Series (Erectimage)
PV-3000DE Series Digital Optical Comparator the Z-axis uses stepper motor drive, electric focusing, simultaneously increasing the count in theZ-axis grating, ladder components can be measured, greatlyi ncreased the performance. In addition, PV-3000DE Series projectors, the lens magnification is complete, customers can measure according to the different objects match different lens.

Features:
5XLens Large rvision ; electric Z axis, a better mode of operation.
profile projector<br />

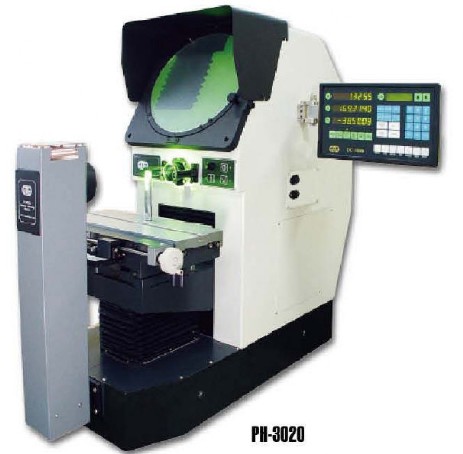

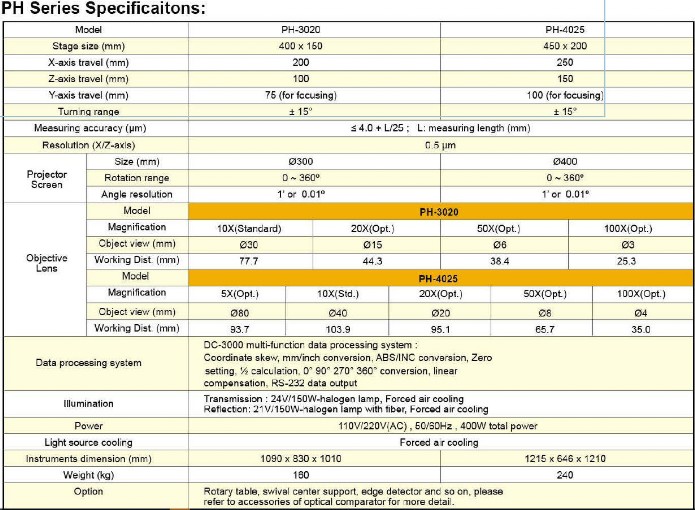

Horizontal Type Digital Optical Comparator PH series
Features:
1.Helix angle stage adjustable :±15"
2.Heavy-Duty, metal construction
3.Greater range and high accuracy
4.Powerful DRO provides fast geometric computations in asi mple,easy to use format.

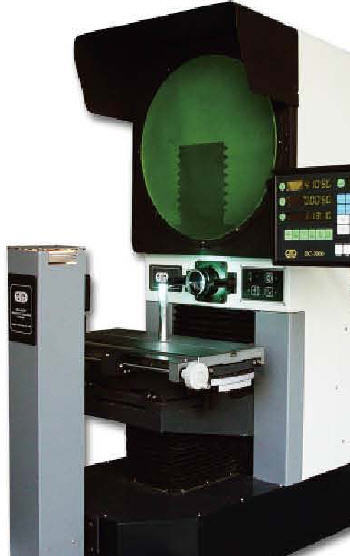

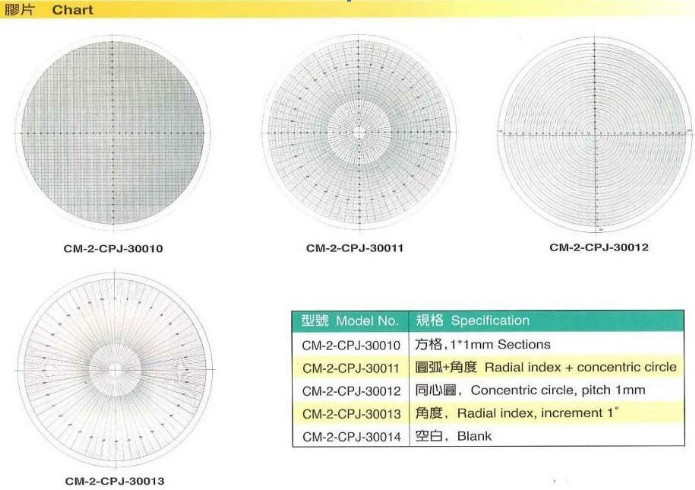

Optional chart,  ø400 mm to be used on our PH4025.

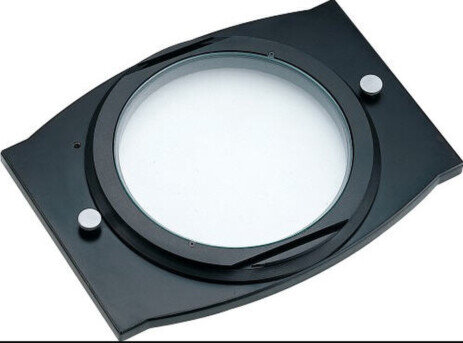

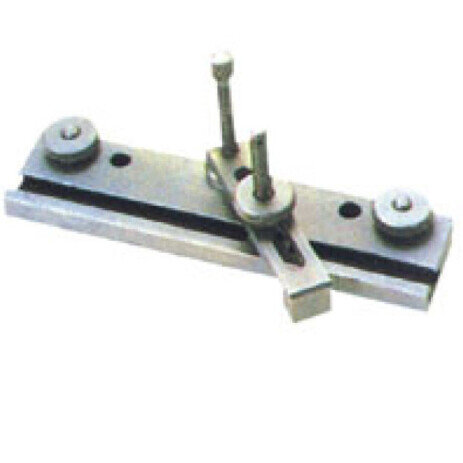

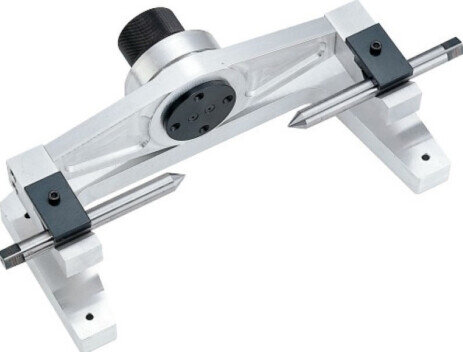

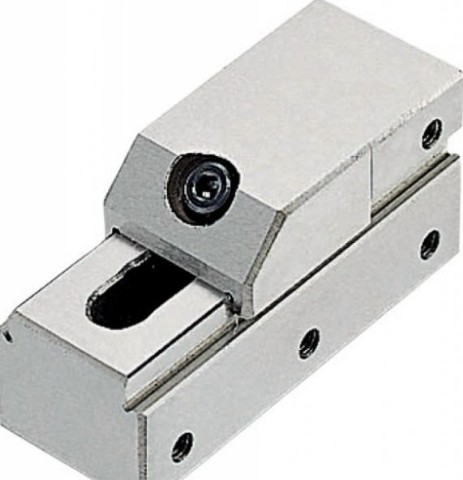

Accessories available :
