Two channels T° datalogger

Temperature > Sterilisation
Back to the TEMPERATURE MENU
HiTemp140X2 Dual Probe Data Logger
HiTemp140X2 series of High Temperature Dual Probe Data Loggers featuring ambient and remote temperature probe combinations.

Product Overview

The HiTemp140X2 series of dual probe high temperature data loggers are comprised of a stainless steel data logger body and feature either two remote temperature probes one ambient and one remote temperature probe combination. This data logger series offers extreme flexibility for high temperature monitoring applications.

The dual probes of the HiTemp140X2 series allow for simultaneous temperature monitoring and are ideal for applications such as oven mapping, surface temperature monitoring, autoclave validation, food processing, sterilization processes and much more.

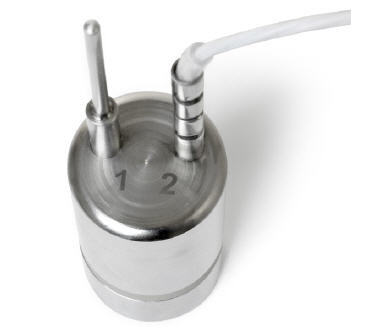

The HiTemp140X2-TD data logger models feature a 2 inch rigid, fast response, transitional diameter probe to measure ambient temperature, combined with a second stainless steel bendable or flexible RTD probe option.

The HiTemp140X2-FP data logger models feature a 72 inch or 36 inch, lightweight flexible RTD probe, combined with a second stainless steel bendable probe or a second flexible RTD probe.

The HiTemp140X2 data logger series is compatible with the latest version of the MadgeTech Software. This allows for simple starting, stopping and downloading of collected data. Once the readings have been downloaded to the software, it can be viewed in graphic, tabular, and summary form for easy analysis, as well as the potential to be exported into Excel for further calculations.

All HiTemp140X2 data loggers have the capacity to store up to 32,700  time and date stamped readings and feature non-volatile solid state  memory that will retain data even if the battery becomes discharged.
Additional Features
Submergibility
The HiTemp140X2 series is rated IP68 and is fully submersible. They can be placed in environments up to 230 ft (70 m) of water.
Bend Radius
- The bendable probe can be bent to a 1/4 inch bend radius. The probe should not be bent within 1 inch of either weld joint.
- The flexible probe should not be bent within 1 inch where the probe meets the logger or less than 1 inch from the probe tip.
O-Rings
O-ring maintenance is a key factor when properly caring for the HiTemp140X2 data loggers.
The O-rings ensure a tight seal and prevent liquid from entering the inside of the device.
Please refer to the application note “O-Rings 101: Protecting Your Data”, found on the MadgeTech website, for information on how to prevent O-ring failure.
Trigger Settings
The device can be programmed to only record based off user configured trigger settings.
1. In the Connected devices panel, select the intended device to change the settings.
2. On the Device tab, in the Information group, click Properties. Users can also right-click on the device and select Properties in the context menu.
3. Click Trigger and configure the Trigger settings. Trigger formats are available in Window and Two Point (bi-level) mode. Window mode allows for one range of temperature monitoring and two point mode allows for two ranges.

Note: This product is rated for use up to 140 °C. Please heed the battery warning. The product will explode if
exposed to temperatures above 140 °C.
HiTemp140X2 Series General Specifications
Reading Rate : 1 reading every second up to 1 reading every 24 hours
Memory : 32,767 readings
Memory Wrap Around  Yes
Start Modes
• Software programmable immediate start
• Delay start up to 18 months in advance
Stop Modes : Manual or Timed (Specific data and time)
Real Time Recording : May be used with PC to monitor and record data in real time
Password Protection : An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.
Readings in Trigger Settings Mode : 16,383 readings
Trigger Settings : High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers. (Triggering on channel #1 only)
Battery Type : 3.6V high-temperature lithium battery included user replaceable
Battery Life : 1 year typical (1 minute reading rate at 25 °C/77 °F)
Calibration : Digital calibration through software
Calibration Date : Automatically recorded within device
Data Format : Date and time stamped °C, °F, °R, K,
Time Accuracy :
• 1 minute/month at 25 °C (77 °F)
• Extended Operation: ±20 minutes/month at 140 °C (±450 ppm)
Computer Interface : IFC400 or IFC406 USB docking station required; 125,000 baud
Operating System Compatibility : XP SP3/Vista/Windows 7/Windows 8
MadgeTech Software Compatibility :
• MadgeTech Standard Software version 4.2.1.0 or later
• MadgeTech Secure Software version 4.2.0.0 or later
Operating Environment : -40 °C to +140 °C
                                           0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA
IP Rating : IP68
Dimensions (body) : 48 mm x 24.6 mm x 24.6 mm
Enclosure Material : 316 Stainless Steel
Approvals  : CE
Accessories

IFC400 Data Logger Interface
Interface Cable Package for the HiTemp140 and PR140 Data Loggers. USB Connection with Docking Station Cradle.

HiTemp140X2-TS
Thermal Shield for the HiTemp140X2 Dual Probe Data Logger.

MadgeTech 4 Secure Validation Software Package
IQ/OQ/PQ Secure Software Validation Workbook and Software Package.

ER1425S-HT Lithium Battery
150 °C 3.6V Lithium Battery, ½ AA Pressure Contact.
HiTemp140-O-Ring
One Set of Replacement O-Rings for the HiTemp140.

MagMount-1
Magnetic Holder for use with the PR140, HiTemp140 Series and 1000 Series Data Loggers.

IFC406 Multiplexer Data Logger Interface

IFC406 Multiplexer Data Logger Interface
IFC406 Multiplexer Data Logger Interface, allowing for multiple data loggers to be connected into one interface.

MultiMount-Z Data Logger Stand
Versatile mount or stand for use with the HiTemp140 series of data loggers.

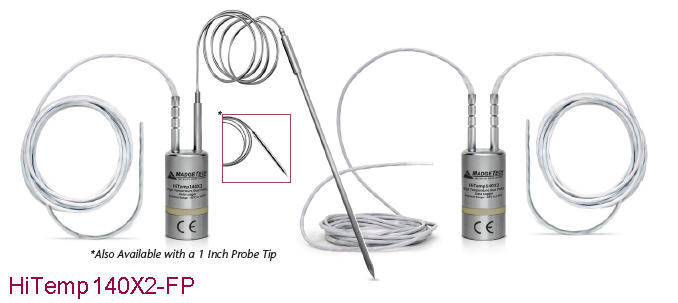

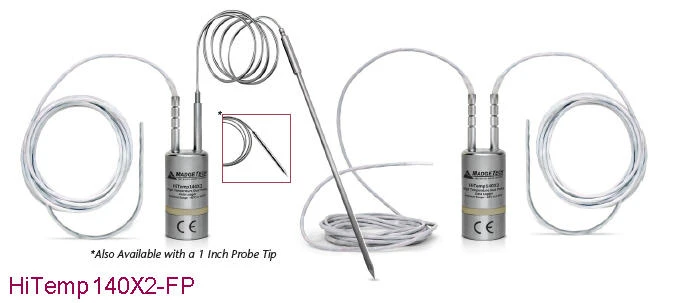

HiTemp140X2-FP
High Temperature Dual Probe Data Loggers with two Remote  Temperature Probes

The HiTemp140X2-FP series of dual probe high temperature data loggers are comprised of a stainless steel data logger body and feature two 36 inch or 72 inch flexible FP probes or are available with one flexible probe and a stainless steel bendable PT probe combination.
The dual probes of this HiTemp140X2 series allow for simultaneous temperature monitoring and provide flexibility in applications such as oven mapping, surface temperature monitoring, autoclave validation and sterilization processes.

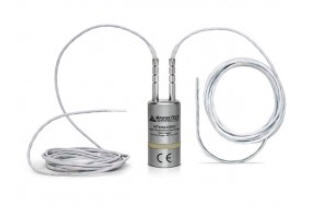

The HiTemp140X2-FP model offers two 36 inch or 72 inch long, lightweight, flexible RTD probes coated with PFA insulation. The FP probe design allows the probe to be easily maneuvered and is ideal for temperature monitoring inside test tubes, small vials, and
other delicate applications. The narrow thermistor probe tip is compatible for use with the MicroDisc probe attachment allowing for precise surface temperature monitoring of shelving and more.
The HiTemp140X2-FP-PT-1 and HiTemp140X2-FP-PT-5 models feature a 24 inch stainless steel bendable probe with the option of either a 1 inch or 5 inch probe tip (sheath). The stainless steel probe can be bent, angled, and coiled in any direction and formed into position as needed. The sharp probe tip allows for easy insertion and has an extended measurement range of -200 °C to +350 °C.
HiTemp140X2-FP Specifications
Temperature Sensor :
• HiTemp140X2-FP: Flexible RTD Probe
• HiTemp140X2-FP-PT: Flexible RTD Probe & Bendable RTD Probe
Probe Measurement Range
• Flexible Probe: -60 °C to +260 °C
• Bendable Probe: -200 °C to +350 °C
Temperature Resolution : 0.01 °C
Calibrated Accuracy : ±0.1 °C
Dimensions (probe) :
HiTemp140X2-FP-36: Flexible Probe: 914.4 mm x 2.5 mm
HiTemp140X2-FP-72: Flexible Probe: 1829 mm x 2.5 mm
HiTemp140X2-FP-PT 1 Inch Bendable Probe: Probe tip: 42 mm x 3.2 mm dia. Bendable portion: 559 mm x 1.6 mm dia.
HiTemp140X2-FP-PT 5 Inch Bendable Probe: Probe tip: 121 mm x 3.2 mm dia. with 25 mm x 4.8 mm dia. handle
Bendable portion: 559 mm x 1.6 mm dia.
Materials
• Bendable Probe: 316 Stainless Steel
• Flexible Probe: PFA Insulated Cable
Weight
• HiTemp140X2-FP:  115 g
• HiTemp140X2-FP-PT: 110 g

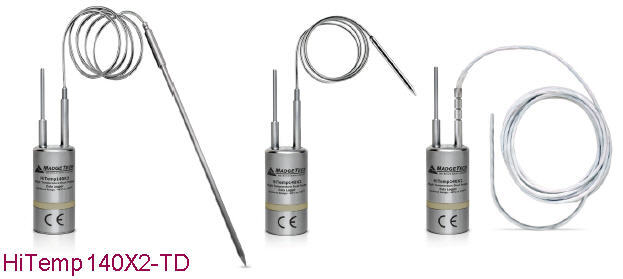

HiTemp140X2-TD
High Temperature Dual Probe Data Loggers with Ambient & Remote Temperature Probes
The HiTemp140X2-TD data logger models feature a 2 inch rigid transitional diameter probe to measure ambient temperature, combined with a second bendable or flexible probe
option.
The rigid 2 inch TD probe is made of stainless steel, offers an ultra-fast response time and is suitable for measuring ambient temperatures in the harshest environments.
The HiTemp140X2-TD-PT-1 and the HiTemp140X2-TD-PT-5 models include a 24 inch bendable probe made of stainless steel with either a 1 inch or 5 inch probe sheath at the tip. The stainless steel PT probe options provide the ability to retain shape when bent into position and the sharp probe tip allows for easy insertion. The stainless steel PT probes also offer an extended measurement range to accommodate extremely high temperatures.

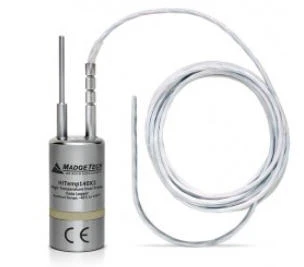

The HiTemp140X2-TD-FP combines the 2 inch rigid probe with the 36 inch or 72 inch RTD lightweight flexible RTD probe. The flexible FP probe option is a lightweight, pliable probe coated with PFA insulation making it ideal for use inside small vials and test tubes. This probe style has a narrow diameter, high accuracy and is ideal for steam sterilization and lyophilization.
The FP probe is also compatible with the MicroDisc probe attachment, used for the surface temperature monitoring of shelving and more.
Temperature Sensor :
• HiTemp140X2-TD-PT: Rigid RTD Probe with a Bendable RTD Probe
• HiTemp140X2-TD-FP: Rigid RTD Probe with a Flexible RTD Probe
Probe Measurement Range :
• Rigid Probe: -200 °C to +260 °C
• Bendable Probe: -200 °C to +350 °C
• Flexible Probe: -60 °C to +260 °C
Temperature Resolution  : 0.01 °C
Calibrated Accuracy : ±0.1 °C
Dimensions (probe)
HiTemp140X2-TD-PT Rigid Probe: 51 mm x 3.2 mm dia.
HiTemp140X2-TD-PT 1 Inch Bendable Probe:
Probe tip: 42 mm x 3.2 mm dia.
Bendable portion: 559 mm x 1.6 mm dia.
HiTemp140X2-TD-PT 5 Inch Bendable Probe:
Probe tip: 121 mm x 3.2 mm dia. with 25 mm x 4.8 mm dia. handle
Bendable portion: 559 mm x 1.6 mm dia.
HiTemp140X2-TD-FP-36 Flexible Probe: 914.4 mm x 2.5 mm
HiTemp140X2-TD-FP-72 Flexible Probe: 1829 mm x 2.5 mm
Materials
• Rigid/Bendable Probe: 316 Stainless Steel
• Flexible Probe: PFA Insulated Cable
Weight
• HiTemp140X2-TD-PT: 85 g
• HiTemp140X2-TD-FP: 100 g

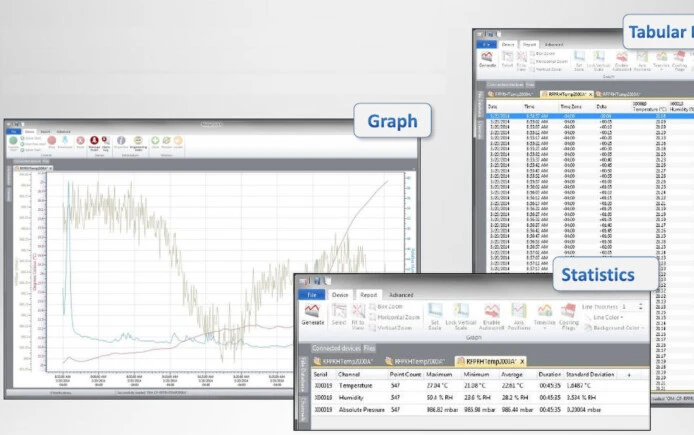

Data Analysis
Graphs, Statistics & Tabular Data
The MadgeTech Software provides powerful data analysis and reporting tools to aid in sterilization validation and compliance.

Simple, Easy-to-use, Windows-based Software
The MadgeTech 4 Data Logger Software is designed to streamline the   process of downloading data and reviewing it in a user-friendly, time   efficient manner. The software offers many customizable features and  options, including the  ability to change engineering units (dependent  upon specific data logger  models), conforming to the needs of the user.
All MadgeTech data loggers operate in a similar fashion and are  simple and easy to use. Each class of logger has a unique device type  and is automatically identified within the MadgeTech Software on the  host computer.
MadgeTech 4 Data Logger Software comes standard with any MadgeTech  Data  Logger and free updates are available to download from the  MadgeTech  website.
Technical Requirements

The MadgeTech Data Logger software requires an IBM or compatible PC with the following:
  • PC-compatible Pentium(R)-class system
  • Windows XP, Vista, Windows 7 (32 and 64 bit), Windows 8* and Windows 10
  • Color SVGA monitor (1024 x 768 resolution)
  • 1GB RAM
  • At least 30MB free hard disk space (for installation)
  • Available 9 pin male serial (COM) port (for serial logger interface cable)
  • Available USB port (for USB logger interface cable)
