Process & Quality Control

A c c e s s o r i e s

Coatings & Industry > CORROSION > Specimen preparation

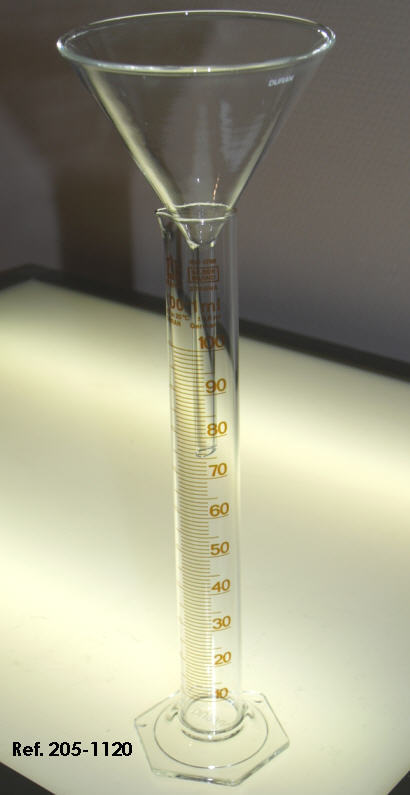

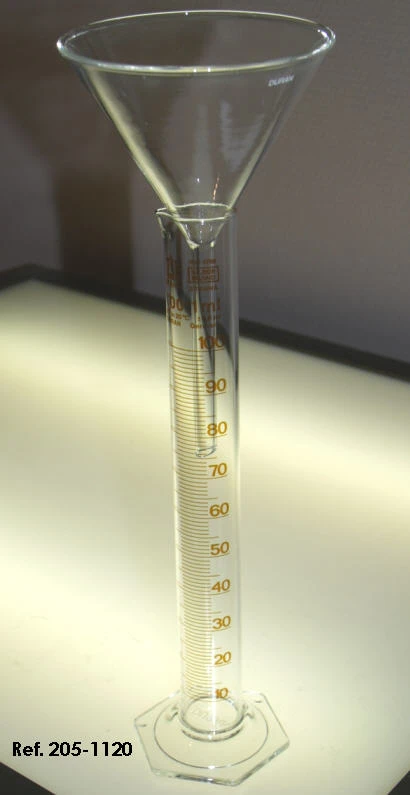

Collecting devices. (ISO 11997-1)

You need at least two, of chemically inert material.

Glass funnels with the stems inserted into graduated cylinders have been found to be suitable collecting devices.

Funnels with a diameter of 100 mm have a collecting area of approximately 80 cm2.

The collecting devices shall be placed in the zone of the cabinet where the test specimens are placed, one close to the spray atomizer, and one remote from the spray atomizer.

They shall be placed so that only spray and not liquid falling from test panels or from parts of the cabinet is collected.

Ref.  :  205-1120
Designation : Salt Spray Cabinet 100 ml rain gauge Funnel (2 units), diameter 100mm, height 180mm, with stem diameter 10mm, height 100 mm, cylinder measuring 100ml:1ml amber grad. glass base

Condensate receptacle

for checking precipitation in exposure chamber.

Two at least are required by the standards
(DIN EN ISO 9227, ASTM,  MIL-STD and PN tests.)

ref. : 101-02240132

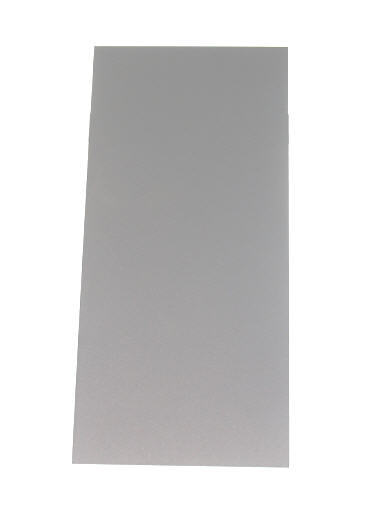

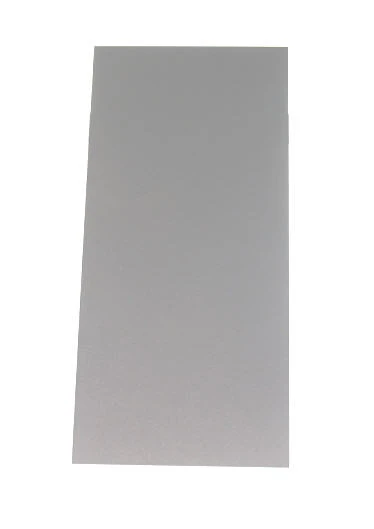

Ref.  101.0814.01.32   Test Panels (150 x 70 x 1 mm) per 100 pcs.

Made of steel CR4 in accordance with ISO 3574, to determine the mass loss during salt spray tests in accordance with  DIN EN ISO 9227

Ref.  101.0814.02.32    Test Panels (150 x 100 x 1 mm) per 100 pcs.
Made of steel CR4 in accordance with ISO 3574, for organic coatings in accordance with  DIN EN ISO 9227

Ref.  172-1.0338.0.75    Kesternich Test Panels (100x50x0,75mm)per 100 pcs,
accordance with din EN10130, steel DC04-FePO4B

Ref.  172-1.0338.1     Kesternich Test Panels (100x50x1mm) per 100 pcs,
Accordance with din EN10130, steel DC04-FePO4B

Ref.  172-1.0338.1/800    Kesternich Test Panels (400x200x1mm) per 40 pcs,
Accordance with din EN10130, steel DC04-FePO4

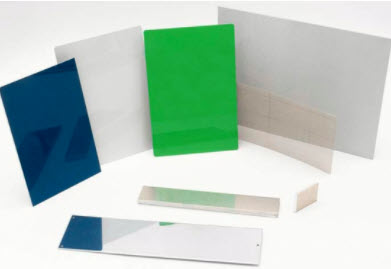

Aluminium Test Panels
For the mechanical tests :
the test panels shall be made of the alloy AA 5005-H24 or -H14 (AlMg 1 - semihard) with a thickness of 0.8 or 1 mm,

For the corrosion tests
the test samples shall be made of AA 6060 or AA 6063.

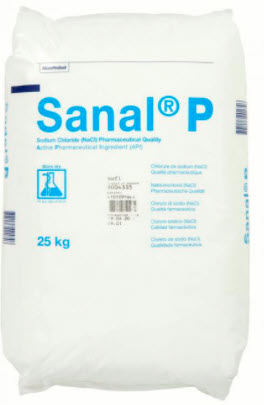

Ref.  101.0607.01.52
Special Salt Sanal® P 607

for the production of sodium chloride solutions for corrosion testing according to DIN EN ISO 9227, ASTM B 117, etc..
The manufacturing  and quality of Sanal® P is according to the ICH Q7 GMP guidelines.
Delivery including certificate.



- Purchase quantity   25 kg (bag)
- Purchase quantity 100 kg (4 bags á 25 kg)
- Purchase quantity 200 kg (8 bags á 25 kg)
- Purchase quantity 300 kg (12 bags á 25 kg)
- Purchase quantity 500 kg (20 bags á 25 kg)
