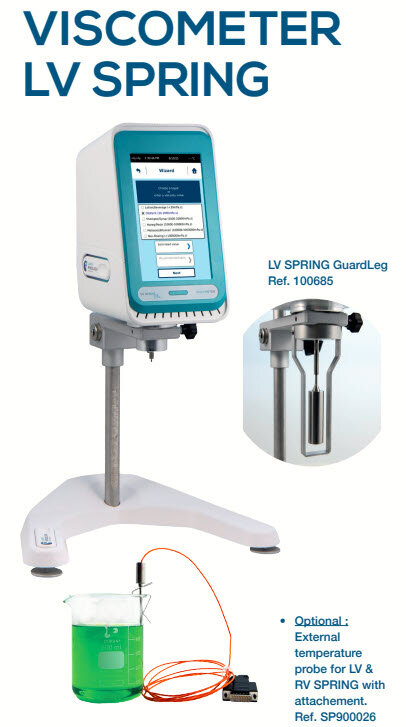

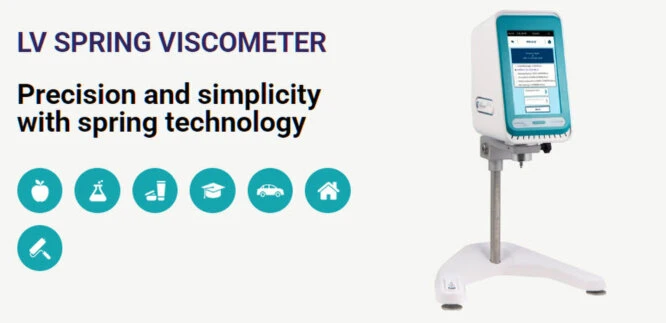

LV SPRING VISCOMETER
Our new range of viscometers combines precision, ease of use and connectivity to meet the requirements of the most demanding laboratories and industrial environments.
+Technology to Spring.
+Electronic bubble level.
+Programming and memorization of methods.
+Direct measurement with delay.
+User mode and protected mode.
+Storage and data transfer via USB.
+Display of the torque gauge.
+Printer connection.
+Compatible RheoTex software.
+Display of viscosity limits according to mobile and speed.
+Piloting in speed or gradient.
+Control of temperature controls.
+Multi-interval method.
+LIMS function.
+Function QC limits.
+Support with adjustable feet.
+Method wizard.
+Direct control of temperature unit.
Specifications 1
- Type of instrument : Rotating viscometer with spring and 7' touchscreen
- Rotation speeds : Unlimited speed between 0.1 and 250 r/min
- Torque range : 0.06737 mNm
- Temperature : The LV SPRING has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C.
- Accuracy : +/- 1 % of the full scale
- Repeatability : +/- 0,2 %
- Display : Viscosity ( cP/ Poises or mPa.s/ Pa.s) Speed- Shear gradient - Torque (%- mNm)- Stress- Time- Temperature- Electronic bubble level
- Compatible accessories : HELIPRO SPRINGDisplay for spindles
Protects touch screen
Verification oils
SMALL VOLUME KIT SPRING
THERMOCELL PACKAGE SPRING
Rheotex software
Specifications 2
- Security and confidentiality : An «operator» function allows you to enter a username for youinstrument. This user must then be identified using a 4-digit code.
There is also a protected mode that locks your measurement conditions. - Languages : French/English/Russian/Spanish/Turkish/German/Italian/Korean/Portuguese/Ukrainian

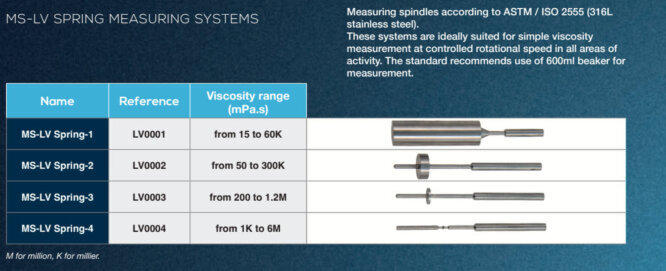

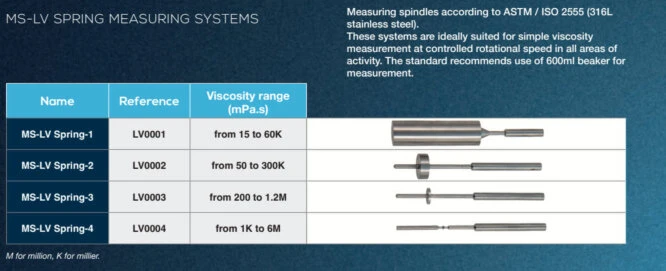

- Compatible measuring systems : MS LV Spring, MS RV Spring, MS SV Spring, MS ULA Spring.
- Compatible temperature control : EVA LR, EVA MS DIN, RT-1 PLUS. *only with adaptation kit (Ref. SP01KIT).
- Supply voltage : 90-240 VAC 50/60 Hz
- PC connections : RS232 and Ethernet USB port
- Printer connection : USB HOST Port- Compatible PCL/5
- Dimensions and weight : Head: D115 x H243 x W138 mmSupport: L340 x W305 x H70 mm
Stainless steel rod: Length 500 mm
Weight: 6.1 Kg - Part Number : 111-N800000
Scope of delivery :
- 4 Spindles LV
- 1 GuardLeg LV
- 1 Rack stand
- 1 User manual
- 1 Calibration and checking certificate
- 1 Carrying case

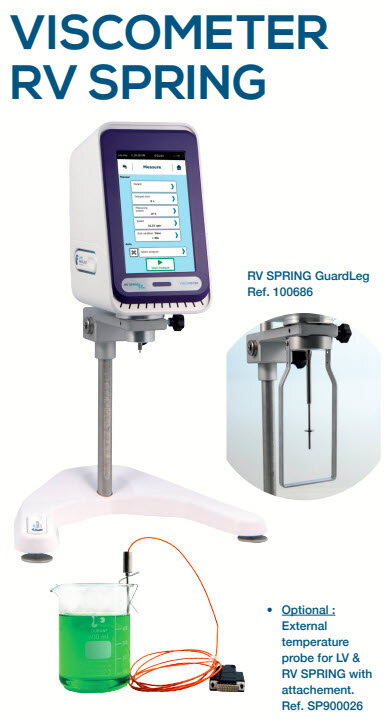

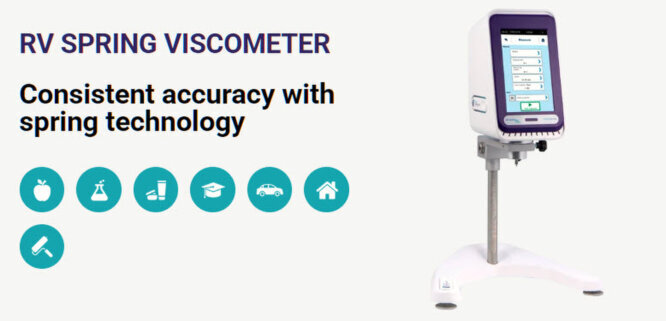

RV SPRING VISCOMETER
Our new range of viscometers combines precision, ease of use and connectivity to meet the requirements of the most demanding laboratories and industrial environments.
+Technology to Spring.
+Electronic bubble level.
+Programming and memorization of methods.
+Direct measurement with delay.
+User mode and protected mode.
+Storage and data transfer via USB.
+Display of the torque gauge.
+Printer connection.
+Compatible RheoTex software.
+Display of viscosity limits according to mobile and speed.
+Piloting in speed or gradient.
+Control of temperature controls.
+Multi-interval method.
+LIMS function.
+Function QC limits.
+Support with adjustable feet.
+Method wizard.
+Electronic bubble level.
+Programming and memorization of methods.
+Direct measurement with delay.
+User mode and protected mode.
+Storage and data transfer via USB.
+Display of the torque gauge.
+Printer connection.
+Compatible RheoTex software.
+Display of viscosity limits according to mobile and speed.
+Piloting in speed or gradient.
+Control of temperature controls.
+Multi-interval method.
+LIMS function.
+Function QC limits.
+Support with adjustable feet.
+Method wizard.
Specifications 1
- Type of instrument : Rotating viscometer with spring and 7' touchscreen
- Rotation speeds : Unlimited speed between 0.1 and 250 r/min
- Torque range : 0.7187 mNm
- Temperature : From -50°C to +300°C with external probe
- Accuracy : +/- 1 % of the full scale
- Repeatability : +/- 0,2 %
- Display : Viscosity ( cP/ Poises or mPa.s/ Pa.s) Speed- Shear gradient - Torque (%- mNm)- Stress- Time- Temperature- Electronic bubble level
- Compatible accessories : HELIPRO SPRINGDisplay for spindles
Protects touch screen
Verification oils
SMALL VOLUME KIT SPRING
THERMOCELL PACKAGE SPRING
Rheotex software - Security and confidentiality : An «operator» function allows you to enter a username for youinstrument. This user must then be identified using a 4-digit code.
There is also a protected mode that locks your measurement
conditions.
Specifications 2
- Languages : French/English/Russian/Spanish/Turkish/German/
- Italian/Korean/Portuguese/Ukrainian

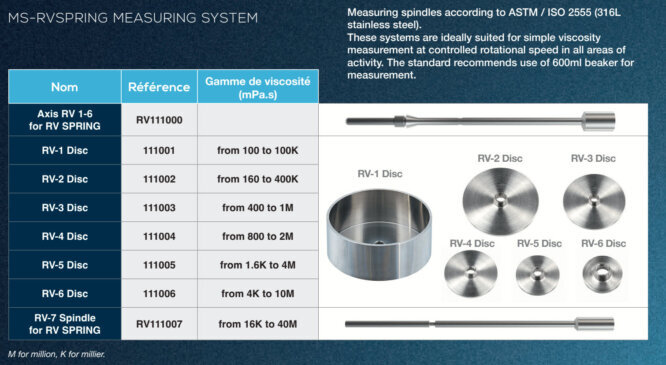

- Compatible measuring systems : MS LV Spring, MS RV Spring, MS SV Spring, MS ULA Spring.
- Compatible temperature control : EVA LR, EVA MS DIN, RT-1 PLUS.
- *Only with adaptation kit Ref. (SP01KIT).
- Supply voltage : 90-240 VAC 50/60 Hz
- PC connections : RS232 and Ethernet USB port
- Printer connection : USB HOST Port- Compatible PCL/5
- Dimensions and weight : Head: L138 x H243 x P235 mmSupport: L340 x I285 x H70 mm
Stainless steel rod: Length 500 mm
Weight: 6.1 Kg - Part Number : 111-N850000
Scope of supply :
- Languages : French/English/Russian/Spanish/Turkish/German/
- Italian/Korean/Portuguese/Ukrainian
- Compatible measuring systems : MS LV Spring, MS RV Spring, MS SV Spring, MS ULA Spring.
- Compatible temperature control : EVA LR, EVA MS DIN, RT-1 PLUS.
- *Only with adaptation kit Ref. (SP01KIT).
- Supply voltage : 90-240 VAC 50/60 Hz
- PC connections : RS232 and Ethernet USB port
- Printer connection : USB HOST Port- Compatible PCL/5
- Dimensions and weight : Head: L138 x H243 x P235 mmSupport: L340 x I285 x H70 mm
Stainless steel rod: Length 500 mm
Weight: 6.1 Kg - Part Number : 111-N850000
