NEWSTEO Radio dataloggers

Temperature > Central Monitoring

Back to the TEMPERATURE MENU

Radio T° Wireless data logger

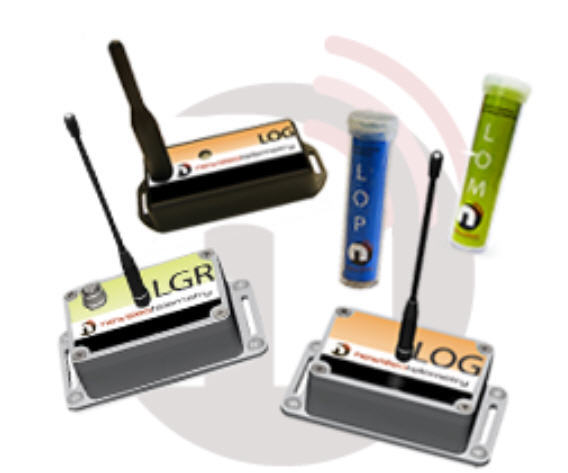

Radio Temperature dataloggers with internal probe

Newsteo offers a range of dataloggers for temperature measurement with internal or external sensors.

Newsteo LOG26, LOG36, LOM16, LOM18, LOP16 : Miniatures and easy to integrate, these recorders – radio transmitters (also called data loggers) allows oversee at distance the temperature of an environment.
Newsteo LGR + probe: datalogger for temperature. The sensor is placed at the end of a probe, which is itself connected to the datalogger housing.

Newsteo temperature data logger, wireless temperature measure.

Newsteo offers a range of temperature recorders (or data loggers) that allow:

measuring temperature,
recording this measurement or transmitting in real time to a supervision center,
displaying the measurement on a PC, tablet, smart phone …

Radio recorders offered by Newsteo are standalone recorders, battery-powered and easily movable.

Their compact design allows them to be easily used for real-time monitoring of the cold chain temperature monitoring in refrigerators, in the pharmaceutical or food industry.

Standalone recorder

up to 3 years battery-life, user-replaceable battery

Compact design

Internal sensor -40 … + 85 ° C

Radio 868MHz

Automatic measurements transfer to the receiving station

EN12830

The LOG36 & LOM16 temperature recorders are EN12830 certified

Main characteristics of the radio temperature data loggers
Product	LOG26	LOG36	LOM16	LOM18	LOP16
Measurement range	-40°C … +70°C	-40°C … +85°C EN12830	-40°C … +70°C EN12830	10°C … +60°C	-40°C … +70°C
Accuracy	± 0.3°C	± 0.3°C	± 0.3°C	± 0.1°C	± 0.3°C
IP Level	IP54	IP65	IP67	IP67	IP67
Radio range	Up to 800 m	Up to 900 m	200 m	200 m	200 m

Product	LGR36 LGR46	LGR33	LGR37	LGR30
Measurement range	-40°C … +70°C	-40°C … +85°C EN12830	-40°C … +70°C EN12830	10°C … +60°C
Logger interface	For Newsteo digital temperature probe 1 or 2 sensors per probe	For PT1000	For Thermocouple	For PT100

Range of temperature loggers with internal sensor

LOM16

Miniature temperature recorder
Plastic casing
EN12830 certified

LOM18

Miniature temperature recorder
Plastic casing
High accuracy

LOP16

Miniature temperature recorder
Plastic casing
Dedicated to temperature monitoring during transport, LED warning when a threshold is crossed

LOG26

Temperature Logger
Plastic casing
High radio range

LOG36

Temperature Logger
Aluminium casing
High radio range
EN12830 certified

Technical specifications of the temperature dataloggers

Operating Temperature

LOM16, LOP16, LOG26 : -40°C … +70°C
LOM18 : -10°C … +60°C
LOG36 : -40°C … +85°C

Accuracy

LOM16, LOP16, LOG26, LOG36 : ± 0.3°C [‐30°C…+60°C], ± 1°C beyond

LOM18 :

± 0.1°C [5°C…+45°C], ± 0.2°C beyond

Resolution

LOM16, LOP16, LOG26, LOG36 : ± 0.1°C

LOM18 : ± 0.034°C

Measures Frequency

Can be set from one measure every seconds to one every 4 hours

Memory Capacity

Up to 32 256 measurements with date and time.

Measurement securisation

Acknowledgment process between the transmitter and the receiver to ensure that no data is lost during radio transmission
Back-up of the last 32.000 measurements in Logger memory even after transmission to the receiver

Calibration

Digital sensor calibrated at the factory
COFRAC certification on order

Certifications

CE
LOG36 & LOM16 : EN12830

Radio External T° Wireless Measurement

Radio Temperature dataloggers with external probe

Newsteo Logger LGR, radio recorder and transmitter for digital probe – 1 or 2 sensors temperature probe

The Newsteo temperature data logger with probe is an autonomous temperature recorder, battery powered , which delivers real-time measurements to a supervisory position. The temperature probes are designed with digital sensors, enabling high accuracy (± 0.3 ° C) and very low drift over time.

The recorder comes in 2 versions:

LGR36 : wireless transmission and measurement system with 1 external temperature probe – 1 sensor
LGR46 : wireless transmission and measurement system with 1 external temperature probe – 2 sensors

This datalogger has been specially designed for heating engineers, sanitary and hot water networks surveillance. The probe can be fixed on any type of pipe and monitor its temperature.

Newsteo temperature data logger, wireless temperature measure.

Newsteo offers a range of temperature recorders (or data loggers) that allow:

measuring temperature,
recording this measurement or transmitting in real time to a supervision center,
displaying the measurement on a PC, tablet, smart phone …

Radio recorders offered by Newsteo are standalone recorders, battery-powered and easily movable.

Their compact design allows them to be easily used for real-time monitoring of the cold chain temperature monitoring in refrigerators, in the pharmaceutical or food industry.

Standalone recorder 3 years battery-life, user replaceable battery

External probe -40 ° C … + 80 ° C

Radio 868MHz Automatic measurements transfer to the receiving station

Easy installation Easily removable

Specifications 1 Specifications 2

Technical specifications

Product : Temperature datalogger with external probe

Reference : PFPN-LGR36-001 : 1 sensor

PFPN-LGR46-001 : 2 sensors

Measuring Range : Depending on the probe (max. range: -40°C to +80°C)

Accuracy : +/- 0.3°C

Casing operating temperature : -40°C to +85°C

Internal temperature sensor : Temperature sensor inside the casing (in addition to the probe temperature sensor)

Measurement frequency : Can be set from one measure every seconds to one every 4 hours

Memory Capacity : Up to 32 768 mesures with date and time.

Measurement securisation :

Acknowledgment process between the transmitter and the receiver to ensure that no data is lost during radio transmission
Back-up of the last 32.000 measurements in Logger memory even after transmission to the receiver

Probe connection : Through connector available on the top of the logger

Certification : COFRAC calibration on order

Battery

AA Lithium Thionyle (3,6V) included, special design with plug to maintain the battery

Accessible and user replaceable battery

Optional: dual battery pack to double battery life

Autonomy

Up to 3 years (at 25°C with a frequency measure of 15 minutes)

See Battery life model

CASING :

Size : 98mm x 64mm x 34mm

Weight with battery : 250g

Casing : Aluminium

IP level : IP65

Radio

Radio frequency : ISM 868 MHz

Radio range Up to 900 meters (with supplied antenna)

Supplied antenna 1/2 wave antenna

Probes for Newsteo Logger LGR36

PFPN-STE51-003

Temperature probe with integrated digital temperature sensor inside stainless steel tip
Range of measure : – 40° to + 80°C, compliant with temporary temperature peaks up to 100°C in fixed installation.
Accuracy :
+/- 0.3°C (-30°C … +60°C)
+/- 1°C (-40°C … -30°C and +60°C…+80°C)
IP68
5 meters cable, 4.8mm diameter

PFPN-STE51-005

Newsteo temperature probe with one integrated temperature sensor
Application: temperature monitoring of water pipe
Measurement range : -40°C … +80°C, compliant with temporary temperature peaks up to 100 ° C in fixed installation.
Accuracy :
+/- 0.3°C (-30°C … +60°C)
+/- 1°C (-40°C … -30°C and +60°C…+100°C)
Total Lenght : 5 meters, diameter : 4.8 mm.
Tip: cylindrical stainless steel tip, protected by an aluminum hood, for:
– Mechanical protection
– Homogenization of the temperature around the sensor element sheathed in stainless steel.
– Guide for aligning it with the pipe

PFPN-STE51-002

Temperature probe with integrated temperature sensor
Range of measure : -40°C … +80°C
Accuracy :
+/- 0.3°C (-30°C … +60°C)
+/- 1°C (-40°C … -30°C and +60°C…+80°C)

PFPN-STE51-004

Newsteo temperature probe with integrated temperature sensor, specially designed for the door seal (ribbon cable on 40 cm)
Range of measure : -40°C … +80°C
Accuracy :
+/- 0.3°C (-30°C … +60°C)
+/- 1°C (-40°C … -30°C and +60°C…+80°C)
Length:
Round cable of 2 meters (to be connected to the datalogger)
Ribbon cable (to be put under the door seal) : length : 400 mm, thickness : 0.5 mm (the ribbon cable is an extension of the external cable)
Plastic housing including temperature sensor: 35 mm x 35 mm x 20 mm

probes for Newsteo Logger LGR46

PFPN-STT51-002

Temperature probe with 2 digital temperature sensors integrated inside stainless steel tip

Range of measure : – 40° to + 80°C, compliant with temporary temperature peaks up to 100°C in fixed installation.

Accuracy :

+/- 0.3°C (-30°C … +60°C)
+/- 1°C (-40°C … -30°C and +60°C…+80°C)

IP68

Total Lenght : 5 meters, diameter : 4.8 mm. The cable splits up after 20 centimeters. (Both probes are indepedent from each other upon 4.80 meters.)

Cylindrical stainless steel tip

PFPN-STT51-003

Newsteo temperature probe with two integrated temperature sensors
Application: temperature monitoring of water pipe
Measure range : -40°C … +80°C, compliant with temporary temperature peaks up to 100°C in fixed installation.

+/- 0.3°C (-30°C … +60°C)
+/- 1°C (-40°C … -30°C and +60°C…+80°C)

Total Lenght : 5 meters, diameter : 4.8 mm. The cable splits up after 20 centimeters. (Both probes are indepedent from each other upon 4.80 meters.)
Tip: cylindrical stainless steel tip, protected by an aluminum hood, for:
– Mechanical protection
– Homogenization of the temperature around the sensor element sheathed in stainless steel.
– Guide for aligning it with the pipe

The Newsteo radio receiver for PC : RF to USB key

This USB device connects to the USB port of a PC and communicates with all Newsteo radio dataloggers.

RF-to-USB key is delivered with Windows drivers
Once driver first installed, the RF-to-USB key behaves as a plug’n’play standard removable device
USB 1.1 high speed (USB 2.0 host compatible)
The RF-to-USB key is marketed with the measurement display software: the RF Monitor software
Powered by PC (no internal battery)
1/4 wave antenna. The 1/4 wavelength antenna of the key is screwed thanks to a SMA connector. It is very easy to connect other types of antenna to increase range: see Newsteo antennas.
Up to 800 m coverage in free space and up to 5 concrete walls with metallic structure penetration

Data Collectors Features Technical specifications Casing

THE GATEWAYS BETWEEN RADIO DATA LOGGERS & ETHERNET OR 3G NETWORKS

ETHERNET - 3G

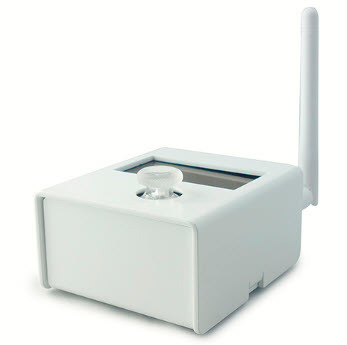

Ethernet or 3G Gateway: the gateway between the radio data loggers and the Webmonitor web application

The Newsteo Gateway allows remote collection, through Ethernet (IP) or 3G (GSM network), of data coming from several Newsteo data loggers, and storage on a remote secured server.

The Newsteo Gateway exists in several versions, for indoor or outdoor uses, with a main power supply or solar panels supply.

PFPN-CUB22-001 : Indoor Ethernet/Wifi Gateway, main power supply
PFPN-GAT43-001 : Indoor 3G Gateway, main power supply. Has a screen for easier installation.
PFPN-GAT33-001 : 3G Gateway, 12V cigarette lighter socket, for vehicles. Has a screen for easier installation and display of measurements.
PFPN-COL51-001 : Outdoor GPRS Gateway, solar panel power

Remote monitoring

Avoid the coming of operator on site

Multi-sites

Several remote sites connected by several gateways

Real time alert

Send an email or a SMS as soon as a measurement is outside of normal thresholds

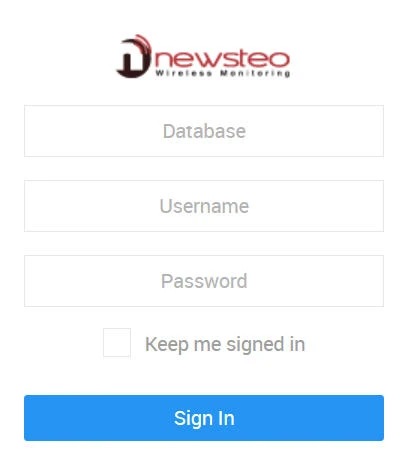

Webmonitor Application

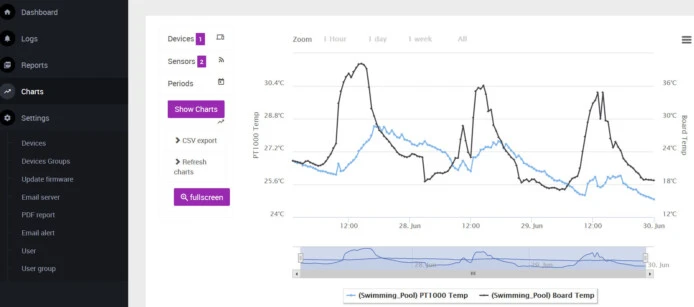

Web application for measurements displaying

Always informed

Cloud computing give you the broader access to your data, this technology enables you a perfect follow-up of your data loggers everywhere, and at every hour over the Internet, by simply using a pc, a smartphone or a tablet.

Data transmission

The Newsteo Gateway communicates with the remote Newsteo Webserver in ‘point-to-point’ mode, which limits the risk on the network itself. Newsteo has implemented the SSL protocol (port 443) to securize the data between the Gateway and the server.

Technical specifications

Reference PFPN-CUB22-001 : Indoor Ethernet/Wifi Gateway

PFPN-GAT43-001 : Indoor 3G Gateway

PFPN-COL51-001 : Outdoor GPRS Gateway

Internal memory PFPN-CUB22-001 : 128 000 measurements

PFPN-GAT43-001 & PFPN-COL51-001 : 60 000 measurements
Can store the measurements in case of loss transmission with the server

(ADSL cut, loss of GPRS network …)

Transmission Gateway – Server

Transmission mode PFPN-CUB22-001 : Ethernet (IPv4 – 100Mbps) & Wifi (IEEE 802.11 b/g/n)

PFPN-GAT43-001 : 3G
PFPN-COL51-001 : GPRS (2.5G)

GPRS antenna PFPN-CUB22-001 : Not applicable

PFPN-GAT43-001 :On board GSM antenna

PFPN-COL51-001 : On board GPRS antenna (not visible)

Subscription PFPN-CUB22-001 : ADSL subscription managed by the customer

PFPN-GAT43-001 & PFPN-COL51-001 : cellular network subscription + SIM card

managed by the customer or supplied by Newsteo

Transmission Gateway – Datalogger

Transmission mode Radio ISM 868 MHz

ISM radio antenna PFPN-CUB22-001 : External antenna included

The antenna is provided with a magnetizable foot and a thin 3 meters cable.

It can easily be re-positioned to optimize radio range

PFPN-GAT43-001 : Full wavelength antenna supplied

PFPN-COL51-001 : High-range full wavelength antenna

Radio range PFPN-CUB22-001 & PFPN-GAT43-001 : Several hundred meters, can pass through several walls

PFPN-COL51-001 : From 1 to several kilometers

Casing :

Power supply PFPN-CUB22-001 : AC power connector

PFPN-GAT43-001 : AC power supplied, AC adapter included

PFPN-COL51-001 : 1 individual solar panel, with 3 Lithium Ion 12Ah reloadable batteries.

Battery life @25°C : 14 days without sun (a weak luminosity is enough to reload the battery).

IP level PFPN-CUB22-001 & PFPN-GAT43-001 : IP30

PFPN-COL51-001 : IP67

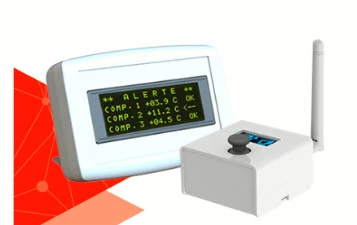

Screen PFPN-CUB22-001 & PFPN-GAT43-001

Solutions to increase the system's RF range.

Communication between Newsteo radio products and reception center (PC with RF-to-USB key) can sometimes be perturbed by obstacle or too high distance. ach.

To improve the transmission between loggers, pc and webmonitor, we can propose you different solutions :

- repeater : they will be installed mid-way, acting as radio relay for all products out of radio reach ;

- or a choice of antennas.

Newsteo Radio Protocol: No Lost Measurement

Your precious data are secured with our Central Monitoring System.

We are aware of the importance of your measurements.

For all the companies we are working with, this is the key need.

Temperature monitoring during blood transportation, humidity in pharmaceutical laboratories, current measurement of an engine ... we ensure in all our products the back-up of your measurements (unlike many competing solutions ... ).

• Each time a radio recorder sends its measurement, it waits for an acknowledgment of the receiver. If it does not receive the acknowledgment, it tries again 2 times to transmit its measurement.
• If the measurement could not be transmitted, the recorder stores it and tries to transmit it one minute later.
• In all cases, whether transmitted or not, the recorder keeps the last 32,000 measurements in its internal memory, thus ensuring a local backup of the data.

RF Monitor Premium : the convenient powerful MMI tool

The Newsteo RF Monitor gives the opportunity to remotely configure and control the distant wireless Newsteo products.

Software versions:

RF Monitor Premium: for single-site installations. The loggers communicate to a PC, the measurements are displayed only on this PC.
RF Monitor Gold: for multi-site installations. Several Loggers networks are created. Each system communicates to a PC that transmits the measurement to a central database. From anywhere in the world, it is possible to connect to the database to check the measurements. This consultation is possible with free software DB Monitor.
CFR 21 part 11 option: available either on the Premium or Gold version, the CFR option adds a module for a complete tracking of each action done on the software.

Mains characteristics of the software
	RFM Premium	RFM Premium CFR21	RFM Gold	RFM Gold CFR21	DM Monitor
Reference	RFM10	RFM40	RFM20	RFM30
License	Included in RF-to-USB Premium Key	Included in RF-to-USB Premium CFR21 Key	Included in RF-to-USB Gold Key	Included in RF-to-USB Gold CFR21 Key	Without license
Setting of the Logger parameters	X	X	X	X
Displaying of the measurements with features to sort them, to generate and print graphics	X	X	X	X
Automatic PDF report sending via e-mail	X	X	X	X
Measurement storage in a local data base	X	X	X	X
Alerts Log	X	X	X	X	X
E-mail alert in case of logger alert	X	X	X	X	X
Calibration tool	X	X	X	X
Range tester tool	X	X	X	X
CFR21 part 11 option: log of all the actions done through the software (setting, alerts…)		X		X	X
Measurement storage in a remote data base shared between several sites			X	X
Remote access to the displaying of the measurements of the remote data base			X	X	X
Management of different users with different levels of rights, access with password		X	X	X	X

Data storage on the Cloud

THE PERFECT CUSTOMER'S SOLUTION

The Newsteo offer of hosting measures in the Cloud allows immediate start up of the solution and also allows you to enjoy exclusive services, such as receiving a database backup each year.

1. The Newsteo Collector send the measurements on the Newsteo platform , where they are stored.

For the collector, the equipment is delivered pre-configured, there is no database installation to perform
No network skill required
4GB Database
Several collectors may send their measurements to a single database. Therefore, only one subscription is necessary

2. The user accesses when he wants to measurements:

Access to measurements can be performed using DB Monitor software provided by Newsteo or by using the web supervision application: Webmonitor, available on the internet.

Access 24 hours on 24, 7 days on 7 to the loggers measurements
Secured access, ID and password required

3. The platform can send alerts or reports:

Using Webmonitor:
Immediate email alerts when threshold is exceeded on a logger
Sending of a PDF report each week, including all measures and alerts detected by the logger
Using the DB Monitor software: immediate alerts by email when a threshold is exceeded in a logger

4. Management of the platform by Newsteo:

Database backups made by Newsteo
Once a year, sending of a DVD including all measurements of the year

Test the web monitor application :

Connect to the website www.newsteo-webmonitor.com

Enter the database : client
Enter the username : client
Enter the password : client

That is, measurements of that user’s data loggers are displayed

Here under display of the webmonitor

Request information or a quote
