For voltage sensors

Laboratory Product > Universal data logger

DATA LOGGER FOR VOLTAGE LEVEL SENSORS

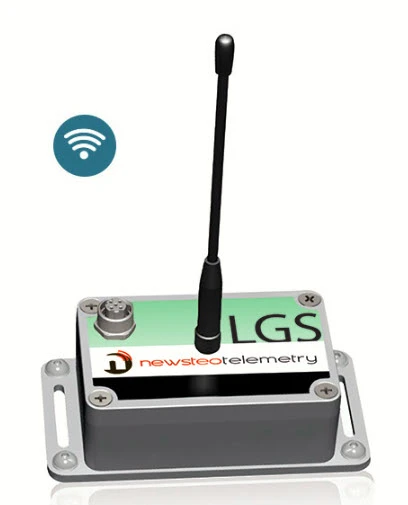

Newsteo data loggers make it possible to transform any voltage level sensor into a wireless sensor

3 Models available :

The advantages of voltage level data loggers

SIMPLE AND FAST
Quick and easy to install. You can move the data logger and the associated sensor at will.
DATA SECURITY
All your measurements are stored in the recorder and then transmitted by radio to a PC or to the Newsteo Cloud
DISPLAY OF MEASUREMENTSS

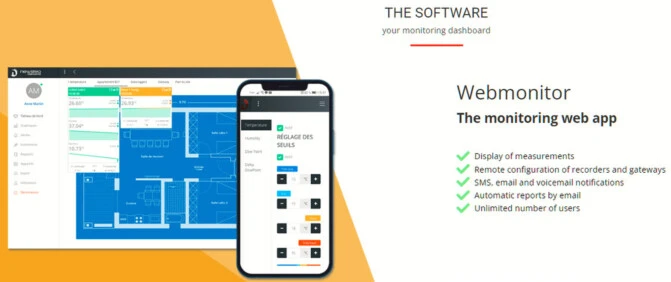

Display configurable on the Webmonitor software, conversion of voltage levels into value

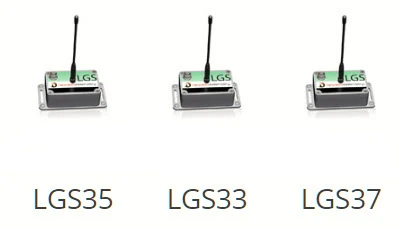

LGS35 LGS335 LGS37

Ref : 221-PFPN-LGS35-001 221-PFPN-LGS33-001 221-PFPN-LGS37-001

Range : 0…10 V 0… 2.5 V -0.05 V à +0.05 V

Accuracy : ± 0.008 V ± 0.008 V ± 1.6 µV

Resolution : 0.0003 V 0.0003 V ± 1.6 µV

Operating temperature : -40°C to +85°C

Temperature measurement : Integrated temperature sensor

Measurement frequency : Can be set from one measure every second to one every 4 hours

Memory Capacity : Up to 32 768 measurements with date and time

Measurement securisation : Acknowledgment process between the transmitter and the receiver

to ensure that no data is lost during radio transmission

Back-up of the last 32.000 measurements in Logger memory even after transmission to the receiver

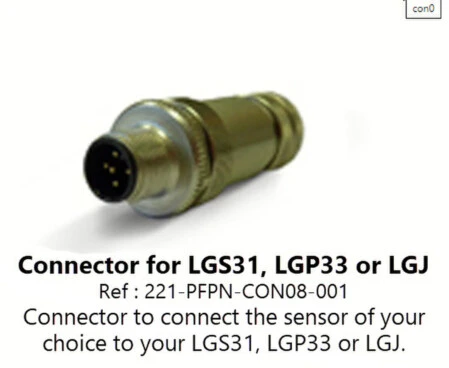

Sensor connection : Through connector available on the top of the logger

Radio range : Up to 900 meters (with supplied antenna)

Autonomy : 3 years*
*Assessed at a measurement frequency of every 10 minutes, at 25°C.

Average value which may vary according to use.

Value given without switching to product alert mode.
